LH-1

OC7-T-24000X-C-C-D-3-R-X,7050mm,24MHZ,Wi2wi振蕩器，尺寸7.0×5.0mm，頻率24MHZ，歐美威爾威晶振，歐美有源振蕩器，石英振蕩子，7050mm有源晶振，石英晶體振蕩器，時鐘晶體振蕩器，有源貼片晶振，石英有源振蕩器，OSC振蕩器，SMD振蕩器，移動通信有源晶振，無線路由器有源晶振，智能家居有源晶振，空中雷達有源晶振，室外基站有源晶振，低相位有源晶振，低相噪有源晶振，低電壓有源晶振，低功耗有源晶振，低耗能有源晶振，高可靠有源晶振，具有低相位高可靠的特點。

OSC晶振產品廣泛應用于移動通信，無線路由器，智能家居，空中雷達，室外基站等應用。OC7-T-24000X-C-C-D-3-R-X,7050mm,24MHZ,Wi2wi振蕩器. LH-2

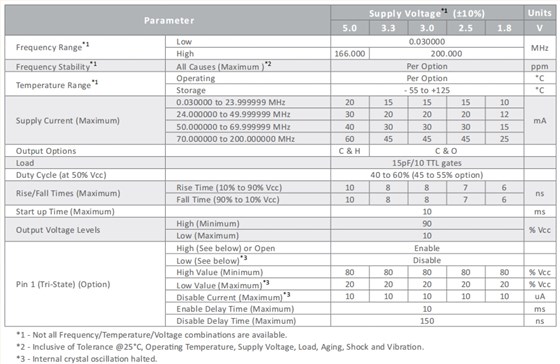

OC7-T-24000X-C-C-D-3-R-X,7050mm,24MHZ,Wi2wi振蕩器參數表

Parameter		Supply Voltage*1( ±10%)					Units
		5.0	3.3	3.0	2.5	1.8	V
Frequency Range*1	Low	24.000					MHz
	High	166.000	200.000
Frequency Stability*1	All Causes (Maximum )*2	Per Option					ppm
Temperature Range*1	Operating	Per Option					°C
	Storage	- 55 to +125					°C
Supply Current (Maximum)	0.030000 to 23.999999 MHz	20	15	15	15	10	mA
	24.000000 to 49.999999 MHz	30	20	20	20	12
	50.000000 to 69.999999 MHz	40	30	30	30	15
	70.000000 to 200.000000 MHz	60	45	45	45	25
Output Options		C & H	C & O
Load		15pF/10 TTL gates
Duty Cycle (at 50% Vcc)		40 to 60% (45 to 55% option)
Rise/Fall Times (Maximum)	Rise Time (10% to 90% Vcc)	10	8	8	7	6	ns
	Fall Time (90% to 10% Vcc)	10	8	8	7	6
Start up Time (Maximum)		10					ms
Output Voltage Levels	High (Minimum)	90					% Vcc
	Low (Maximum)	10
Pin 1 (Tri-State) (Option)	High (See below) or Open	Enable
	Low (See below)*3	Disable
	High Value (Minimum)	80	80	80	80	80	% Vcc
	Low Value (Maximum)*3	20	20	20	20	20	% Vcc
	Disable Current (Maximum)*3	10	10	10	10	10	uA
	Enable Delay Time (Maximum)	10					ms
	Disable Delay Time (Maximum)	150					ns
