首頁 Renesas瑞薩晶振

6G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI8

6G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI86G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI8

產品簡介

6G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI8，尺寸5.0x3.2mm，頻率150MHZ，輸出邏輯LVDS，5032mm差分晶振，差分有源晶振，LVDS輸出晶振，LVDS差分振蕩器，貼片差分晶振，OSC差分晶振，低電壓差分晶振，低損耗差分振蕩器，低抖動差分晶振，低功耗差分振蕩器，低抖動差分晶振，低相位差分晶振，高品質差分晶振，高性能差分振蕩器，6G路由器專用差分晶振，智能家居晶振，光模塊差分晶振，通訊模塊差分振蕩器，通信設備差分晶振，具有低抖動高性能的特點.

OSC晶振產品被廣泛應用智能家居，6G路由器，通信設備，還可廣泛用于光模塊，儀器設備，無線網絡，小型設備等領域。6G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI8.

產品詳情

Abracon-2

LH-1

6G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI8，尺寸5.0x3.2mm，頻率150MHZ，輸出邏輯LVDS，5032mm差分晶振，差分有源晶振，LVDS輸出晶振，LVDS差分振蕩器，貼片差分晶振，OSC差分晶振，低電壓差分晶振，低損耗差分振蕩器，低抖動差分晶振，低功耗差分振蕩器，低抖動差分晶振，低相位差分晶振，高品質差分晶振，高性能差分振蕩器，6G路由器專用差分晶振，智能家居晶振，光模塊差分晶振，通訊模塊差分振蕩器，通信設備差分晶振，具有低抖動高性能的特點.

OSC晶振產品被廣泛應用智能家居，6G路由器，通信設備，還可廣泛用于光模塊，儀器設備，無線網絡，小型設備等領域。6G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI8.

LH-2

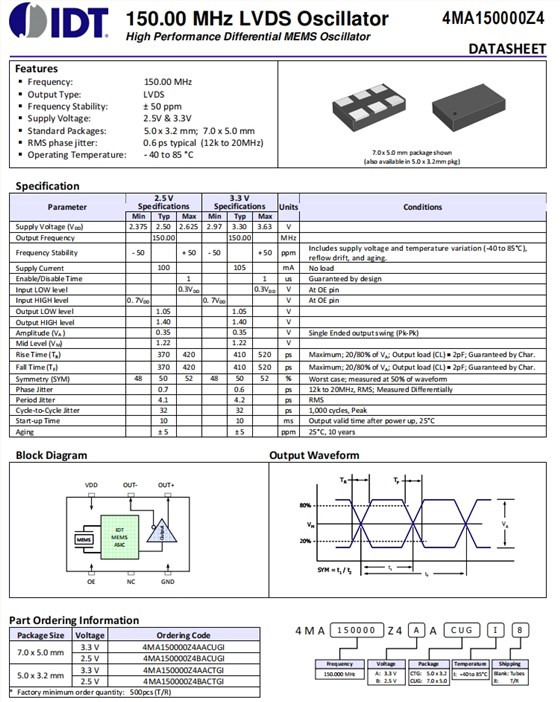

6G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI8參數表

Parameter 2.5 V
Specifications 		3.3 V
Specifications 		Units Conditions
Min Typ Max Min Typ Max
Supply Voltage (VDD) 2.375 2.50 2.625 2.97 3.30 3.63 V
Output Frequency 150.00 150.00 MHz
Frequency Stability - 50 + 50 - 50 + 50 ppm Includes supply voltage and temperature variation (-40 to 85°C),
reflow drift, and aging.
Supply Current 100 105 mA No load
Enable/Disable Time 1 1 us Guaranteed by design
Input LOW level 0.3VDD 0.3VDD V At OE pin
Input HIGH level 0. 7VDD 0. 7VDD V At OE pin
Output LOW level 1.05 1.05 V
Output HIGH level 1.40 1.40 V
Amplitude (VA) 0.35 0.35 V Single Ended output swing (Pk-Pk)
Mid Level (VM) 1.22 1.22 V
Rise Time (TR) 370 420 410 520 ps Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.
Fall Time (TF) 370 420 410 520 ps Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.
Symmetry (SYM) 48 50 52 48 50 52 % Worst case; measured at 50% of waveform
Phase Jitter 0.7 0.6 ps 12k to 20MHz, RMS; Measured Differentially
Period Jitter 4.1 4.2 ps RMS
Cycle-to-Cycle Jitter 32 32 ps 1,000 cycles, Peak
Start-up Time 10 10 ms Output valid time after power up, 25°C
Aging ± 5 ± 5 ppm 25°C, 10 years
LH-3

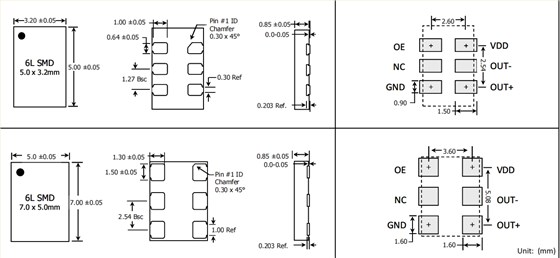

6G路由器晶振,瑞薩LVDS振蕩器4MA,4MA150000Z4AACTGI8 尺寸圖4MA 7050 5032產品特性：

頻率：150.00MHz

輸出類型：LVDS差分晶振

頻率穩定性：±50ppm

電源電壓：2.5V和3.3V

標準包裝：5.0x3.2mm；7.0x5.0毫米

RMS相位抖動：典型值為0.6 ps（12k至20MHz）

工作溫度：-40至85°C

4MA 1

更多相關Renesas晶振型號

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply
4MA125000Z4AACTGI Renesas晶振 MEMS OSC XO 125.0000MHZ LVDS SMD 4MA 125 MHz LVDS 3.3V
4MA148500Z3AACTGI Renesas晶振 MEMS OSC XO 148.5000MHZ LVPECL 4MA 148.5 MHz LVPECL 3.3V
4MA148500Z4AACTGI Renesas晶振 MEMS OSC XO 148.5000MHZ LVDS SMD 4MA 148.5 MHz LVDS 3.3V
4MA150000Z4AACTGI Renesas晶振 MEMS OSC XO 150.0000MHZ LVDS SMD 4MA 150 MHz LVDS 3.3V
4MA155520Z4AACTGI Renesas晶振 MEMS OSC XO 155.5200MHZ LVDS SMD 4MA 155.52 MHz LVDS 3.3V
4MA156250Z4AACTGI Renesas晶振 MEMS OSC XO 156.2500MHZ LVDS SMD 4MA 156.25 MHz LVDS 3.3V
IDT4MA100000Z3AACUGI8 Renesas晶振 OSC MEMS 100.000MHZ LVPECL SMD 4MA 100 MHz LVPECL 3.3V
IDT4MA125000Z3AACUGI8 Renesas晶振 OSC MEMS 125.000MHZ LVPECL SMD 4MA 125 MHz LVPECL 3.3V
IDT4MA133333Z3AACUGI8 Renesas晶振 OSC MEMS 133.333MHZ LVPECL SMD 4MA 133.333 MHz LVPECL 3.3V
IDT4MA150000Z3AACUGI8 Renesas晶振 OSC MEMS 150.000MHZ LVPECL SMD 4MA 150 MHz LVPECL 3.3V
IDT4MA156250Z3AACUGI8 Renesas晶振 OSC MEMS 156.25MHZ LVPECL SMD 4MA 156.25 MHz LVPECL 3.3V
IDT4MA200000Z3AACUGI8 Renesas晶振 MEMS OSC XO 200.0000MHZ LVPECL 4MA 200 MHz LVPECL 3.3V
4MA050000Z4AACTGI Renesas晶振 MEMS OSC XO 50.0000MHZ LVDS SMD 4MA 50 MHz LVDS 3.3V
4MA050000Z4AACUGI Renesas晶振 MEMS OSC XO 50.0000MHZ LVDS SMD 4MA 50 MHz LVDS 3.3V
4MA050000Z4BACTGI Renesas晶振 MEMS OSC XO 50.0000MHZ LVDS SMD 4MA 50 MHz LVDS 2.5V
4MA050000Z4BACUGI Renesas Oscillator MEMS OSC XO 50.0000MHZ LVDS SMD 4MA 50 MHz LVDS 2.5V
4MA066000Z3AACTGI Renesas晶振 MEMS OSC XO 66.0000MHZ LVPECL 4MA 66 MHz LVPECL 3.3V
4MA066000Z3AACUGI Renesas晶振 MEMS OSC XO 66.0000MHZ LVPECL 4MA 66 MHz LVPECL 3.3V
4MA100000Z3AACTGI Renesas晶振 MEMS OSC XO 100.0000MHZ LVPECL 4MA 100 MHz LVPECL 3.3V
4MA100000Z3AACUGI Renesas晶振 MEMS OSC XO 100.0000MHZ LVPECL 4MA 100 MHz LVPECL 3.3V
4MA100000Z4AACTGI Renesas晶振 MEMS OSC XO 100.0000MHZ LVDS SMD 4MA 100 MHz LVDS 3.3V
4MA100000Z4AACUGI Renesas晶振 MEMS OSC XO 100.0000MHZ LVDS SMD 4MA 100 MHz LVDS 3.3V
4MA125000Z3AACTGI Renesas晶振 MEMS OSC XO 125.0000MHZ LVPECL 4MA 125 MHz LVPECL 3.3V
4MA125000Z3AACUGI Renesas晶振 MEMS OSC XO 125.0000MHZ LVPECL 4MA 125 MHz LVPECL 3.3V
4MA125000Z4AACTGI8 Renesas晶振 MEMS OSC XO 125.0000MHZ LVDS SMD 4MA 125 MHz LVDS 3.3V
4MA125000Z4AACUGI Renesas晶振 MEMS OSC XO 125.0000MHZ LVDS SMD 4MA 125 MHz LVDS 3.3V
4MA125000Z4AACUGI8 Renesas晶振 MEMS OSC XO 125.0000MHZ LVDS SMD 4MA 125 MHz LVDS 3.3V
4MA125000Z4BACTGI Renesas晶振 MEMS OSC XO 125.0000MHZ LVDS SMD 4MA 125 MHz LVDS 2.5V
4MA125000Z4BACTGI8 Renesas晶振 MEMS OSC XO 125.0000MHZ LVDS SMD 4MA 125 MHz LVDS 2.5V
4MA133000Z3AACTGI Renesas晶振 MEMS OSC XO 133.0000MHZ LVPECL 4MA 133 MHz LVPECL 3.3V
4MA133000Z3AACTGI8 Renesas晶振 MEMS OSC XO 133.0000MHZ LVPECL 4MA 133 MHz LVPECL 3.3V
4MA133000Z3AACUGI Renesas晶振 MEMS OSC XO 133.0000MHZ LVPECL 4MA 133 MHz LVPECL 3.3V
4MA133000Z3AACUGI8 Renesas晶振 MEMS OSC XO 133.0000MHZ LVPECL 4MA 133 MHz LVPECL 3.3V
4MA133330Z4AACTGI Renesas晶振 MEMS OSC XO 133.3300MHZ LVDS SMD 4MA 133.33 MHz LVDS 3.3V
4MA133330Z4AACTGI8 Renesas晶振 MEMS OSC XO 133.3300MHZ LVDS SMD 4MA 133.33 MHz LVDS 3.3V
4MA133330Z4BACTGI Renesas晶振 MEMS OSC XO 133.3300MHZ LVDS SMD 4MA 133.33 MHz LVDS 2.5V
4MA133330Z4BACTGI8 Renesas晶振 MEMS OSC XO 133.3300MHZ LVDS SMD 4MA 133.33 MHz LVDS 2.5V
4MA148352Z4AACUGI Renesas晶振 MEMS OSC XO 148.3520MHZ LVDS SMD 4MA 148.352 MHz LVDS 3.3V
4MA148500Z3AACTGI8 Renesas晶振 MEMS OSC XO 148.5000MHZ LVPECL 4MA 148.5 MHz LVPECL 3.3V
4MA148500Z3AACUGI Renesas晶振 MEMS OSC XO 148.5000MHZ LVPECL 4MA 148.5 MHz LVPECL 3.3V
4MA148500Z3AACUGI8 Renesas晶振 MEMS OSC XO 148.5000MHZ LVPECL 4MA 148.5 MHz LVPECL 3.3V
4MA148500Z4AACTGI8 Renesas晶振 MEMS OSC XO 148.5000MHZ LVDS SMD 4MA 148.5 MHz LVDS 3.3V
4MA148500Z4AACUGI Renesas晶振 MEMS OSC XO 148.5000MHZ LVDS SMD 4MA 148.5 MHz LVDS 3.3V
4MA148500Z4AACUGI8 Renesas晶振 MEMS OSC XO 148.5000MHZ LVDS SMD 4MA 148.5 MHz LVDS 3.3V
4MA148500Z4BACTGI Renesas晶振 MEMS OSC XO 148.5000MHZ LVDS SMD 4MA 148.5 MHz LVDS 2.5V
4MA148500Z4BACTGI8 Renesas晶振 MEMS OSC XO 148.5000MHZ LVDS SMD 4MA 148.5 MHz LVDS 2.5V
4MA150000Z3AACUGI Renesas晶振 MEMS OSC XO 150.0000MHZ LVPECL 4MA 150 MHz LVPECL 3.3V
4MA150000Z4AACTGI8 Renesas晶振 MEMS OSC XO 150.0000MHZ LVDS SMD 4MA 150 MHz LVDS 3.3V
4MA150000Z4AACUGI Renesas晶振 MEMS OSC XO 150.0000MHZ LVDS SMD 4MA 150 MHz LVDS 3.3V
4MA150000Z4AACUGI8 Renesas晶振 MEMS OSC XO 150.0000MHZ LVDS SMD 4MA 150 MHz LVDS 3.3V
4MA150000Z4BACTGI Renesas晶振 MEMS OSC XO 150.0000MHZ LVDS SMD 4MA 150 MHz LVDS 2.5V
4MA150000Z4BACTGI8 Renesas晶振 MEMS OSC XO 150.0000MHZ LVDS SMD 4MA 150 MHz LVDS 2.5V
4MA155520Z4AACTGI8 Renesas晶振 MEMS OSC XO 155.5200MHZ LVDS SMD 4MA 155.52 MHz LVDS 3.3V
4MA155520Z4BACTGI Renesas晶振 MEMS OSC XO 155.5200MHZ LVDS SMD 4MA 155.52 MHz LVDS 2.5V
4MA155520Z4BACTGI8 Renesas晶振 MEMS OSC XO 155.5200MHZ LVDS SMD 4MA 155.52 MHz LVDS 2.5V
4MA156250Z3AACTGI8 Renesas晶振 MEMS OSC XO 156.2500MHZ LVPECL 4MA 156.25 MHz LVPECL 3.3V
4MA156250Z3AACUGI Renesas晶振 MEMS OSC XO 156.2500MHZ LVPECL 4MA 156.25 MHz LVPECL 3.3V
4MA156250Z3BACTGI Renesas晶振 MEMS OSC XO 156.2500MHZ LVPECL 4MA 156.25 MHz LVPECL 2.5V
4MA156250Z3BACTGI8 Renesas晶振 MEMS OSC XO 156.2500MHZ LVPECL 4MA 156.25 MHz LVPECL 2.5V
4MA156250Z3BACUGI Renesas晶振 MEMS OSC XO 156.2500MHZ LVPECL 4MA 156.25 MHz LVPECL 2.5V
4MA156250Z3BACUGI8 Renesas晶振 MEMS OSC XO 156.2500MHZ LVPECL 4MA 156.25 MHz LVPECL 2.5V
4MA156250Z4AACTGI8 Renesas晶振 MEMS OSC XO 156.2500MHZ LVDS SMD 4MA 156.25 MHz LVDS 3.3V
4MA156250Z4AACUGI Renesas晶振 MEMS OSC XO 156.2500MHZ LVDS SMD 4MA 156.25 MHz LVDS 3.3V
4MA156250Z4AACUGI8 Renesas晶振 MEMS OSC XO 156.2500MHZ LVDS SMD 4MA 156.25 MHz LVDS 3.3V
4MA156250Z4BACTGI Renesas晶振 MEMS OSC XO 156.2500MHZ LVDS SMD 4MA 156.25 MHz LVDS 2.5V
4MA156250Z4BACTGI8 Renesas晶振 MEMS OSC XO 156.2500MHZ LVDS SMD 4MA 156.25 MHz LVDS 2.5V
