LH-1

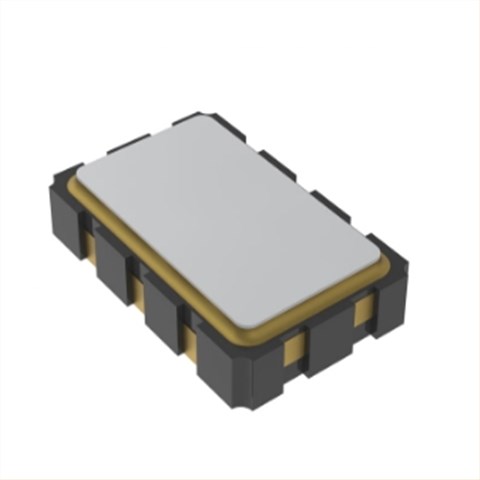

Skyworks有源晶振Si540,540AAA100M000BBG,6G交換機晶振，尺寸5.00x3.20mm，頻率100MHZ，輸出邏輯LVPECL，電壓2.5V，3.3V，腳位6-SMD，OSC貼片有源晶振，差分貼片晶振，XO時鐘振蕩器，LVPECL輸出晶振，差分晶振，貼片差分晶振，差分晶體振蕩器，進口LV-PECL差分振蕩器，低功耗差分晶振，低電壓差分振蕩器，低抖動差分晶振，低耗能差分晶振，測試測量差分晶振，服務器專用差分晶振，交換機差分晶振，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡設備差分晶振，輕薄型差分晶振，OSC差分晶振，有源差分晶振，有源晶體振蕩器產品適用于100G/200G/400G OTN，相干光學10G/40G/100G光學以太網3G-SDI/12G-SDI/24G-SDI廣播視頻服務器、交換機、存儲、NIC、搜索加速測試和測量時鐘和數據恢復FPGA/ASIC時鐘等領域。

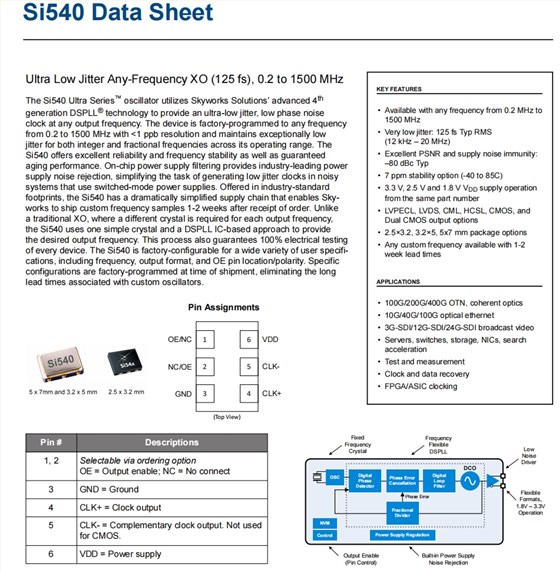

Si540 Ultra系列™ 振蕩器采用Skyworks Solutions先進的第四代一代DSPLL®技術，提供超低抖動、低相位噪聲時鐘在任何輸出頻率。該設備在工廠編程為任何頻率從0.2到1500MHz，分辨率＜1ppb，并保持異常低整數和分?jǐn)?shù)頻率在其工作范圍內的抖動。這個Si540OSC晶振提供卓越的可靠性和頻率穩定性，并保證老化性能。片上電源濾波提供業界領先的電源電源噪聲抑制，簡化了在噪聲中生成低抖動時鐘的任務使用開關模式電源的系統。按行業標準提供Si540具有顯著簡化的供應鏈，使Sky works能夠在收到訂單后1-2周內運送定制頻率的樣品。不像對于每個輸出頻率需要不同晶體的傳統XO，Si540使用一種簡單的晶體.Skyworks有源晶振Si540,540AAA100M000BBG,6G交換機晶振.

LH-2

Skyworks有源晶振Si540,540AAA100M000BBG,6G交換機晶振參數表

Parameter	Symbol	Test Condition/Comment	Min	Typ	Max	Unit
Temperature Range	TA		–40		85	ºC
Frequency Range	FCLK	LVPECL, LVDS, CML	0.2	—	1500	MHz
		HCSL	0.2	—	400	MHz
		CMOS, Dual CMOS	0.2		250	MHz
Supply Voltage	V DD	3.3 V	3.135	3.3	3.465	V
		2.5 V	2.375	2.5	2.625	V
		1.8 V	1.71	1.8	1.89	V
Supply Current	IDD	LVPECL (output enabled)		100	145	mA
		LVDS/CML (output enabled)	—	75	111	mA
		HCSL (output enabled)		80	125	mA
		HCSL-Fast (output enabled)	—	88	137	mA
		CMOS (output enabled)		74	108	mA
		Dual CMOS (output enabled)	—	80	125	mA
		Tristate Hi-Z (output disabled)		64	100	mA
Temperature Stability		Frequency stability Grade A	–20	—	20	ppm
		Frequency stability Grade B	–10		10	ppm
		Frequency stability Grade C	–7	—	7	ppm
Total Stability1	F STAB	Frequency stability Grade A	–50		50	ppm
		Frequency stability Grade B	–25	—	25	ppm
		Frequency stability Grade C	–20		20	ppm
Rise/Fall Time (20% to 80% VPP)	TR/TF	LVPECL/LVDS/CML	—	—	350	ps
		CMOS / Dual CMOS (CL= 5 pF)	—	0.5	1.5	ns
		HCSL, FCLK>50 MHz	—	—	550	ps
		HCSL-Fast, FCLK>50 MHz	—	—	275	ps
Duty Cycle	DC	All formats	45	—	55	%
Output Enable (OE)2	VIH		0.7 × VDD			V
	VIL		—	—	0.3 × VDD	V
	TD	Output Disable Time, FCLK>10 MHz	—	—	3	µs
	TE	Output Enable Time, FCLK>10 MHz			20	µs
Powerup Time	tOSC	Time from 0.9 × VDDuntil output fre- quency (FCLK) within spec	—	—	10	ms

LH-3

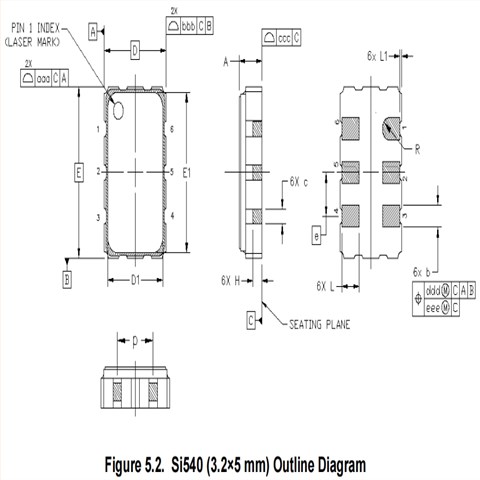

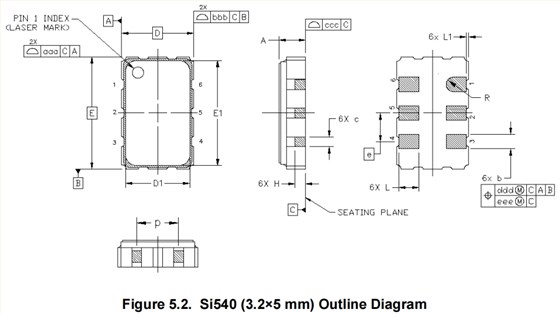

Skyworks有源晶振Si540,540AAA100M000BBG,6G交換機晶振 尺寸圖

差分晶振產品特性：

可用于0.2 MHz至1500兆赫

極低抖動：125 fs典型RMS（12kHz–20MHz）

出色的PSNR和電源抗擾度：–80 dBc典型值

7ppm穩定性選項（-40至85攝氏度）

3.3 V、2.5 V和1.8 V VDD電源操作

來自相同的零件號

LVPECL、LVDS、CML、HCSL、CMOS和雙CMOS輸出選項

2.5×3.2、3.2×5、5x7 mm封裝選項

任何自定義頻率，可提供1-2周交付周期

更多相關Renesas晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply	Frequency Stability
XLH536168.960000I	Renesas晶振	XTAL OSC XO 168.9600MHZ HCMOS	XPRESSOFXO-HC53	168.96 MHz	HCMOS	3.3V	±25ppm
XLL330120.000000X	Renesas晶振	XTAL OSC XO 120.0000MHZ LVDS SMD	XL	120 MHz	LVDS	3.3V	±100ppm
XLH73V073.728000I	Renesas晶振	XTAL OSC VCXO 73.7280MHZ HCMOS	XPRESSOFVXO-HC73	73.728 MHz	HCMOS	3.3V	-
XLH73V074.250000I	Renesas晶振	XTAL OSC VCXO 74.2500MHZ HCMOS	XPRESSOFVXO-HC73	74.25 MHz	HCMOS	3.3V	-
XAH335025.000000K	Renesas晶振	XTAL OSC XO 25.0000MHZ LVCMOS	XAH	25 MHz	LVCMOS	3.3V	±50ppm
XAH335030.000000K	Renesas晶振	XTAL OSC XO 30.0000MHZ LVCMOS	XAH	30 MHz	LVCMOS	3.3V	±50ppm
XLH336156.250JX4I	Renesas晶振	XTAL OSC XO 156.2500MHZ HCMOS	XLH	156.25 MHz	HCMOS	3.3V	±25ppm
XLH335001.024000I	Renesas晶振	XTAL OSC XO 1.0240MHZ HCMOS SMD	XL	1.024 MHz	HCMOS	3.3V	±50ppm
XLL325040.000000I	Renesas晶振	XTAL OSC XO 40.0000MHZ LVDS SMD	XL	40 MHz	LVDS	2.5V	±50ppm
XLL530108.000000I	Renesas晶振	XTAL OSC XO 108.0000MHZ LVDS SMD	XL	108 MHz	LVDS	3.3V	±100ppm
XLL338C50.000000X	Renesas晶振	XTAL OSC XO 1.2500GHZ LVDS SMD	XL	1.25 GHz	LVDS	3.3V	±100ppm
XLP735125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVPECL	XPRESSOFXO-PC73	125 MHz	LVPECL	3.3V	±50ppm
XLP736080.000000I	Renesas晶振	XTAL OSC XO 80.0000MHZ LVPECL	XPRESSOFXO-PC73	80 MHz	LVPECL	3.3V	±25ppm
XLL726156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPRESSOFXO-LC72	156.25 MHz	LVDS	2.5V	±25ppm
XLL73V148.351648I	Renesas晶振	XTAL OSC VCXO 148.351648MHZ LVDS	XPRESSOFVXO-LC73	148.351648 MHz	LVDS	3.3V	-
XUH736156.250JU4I	Renesas晶振	XTAL OSC XO 156.2500MHZ HCMOS	XUH	156.25 MHz	HCMOS	3.3V	±25ppm
XLP73V500.000000I	Renesas晶振	XTAL OSC VCXO 500.0000MHZ LVPECL	XPRESSOFVXO-PC73	500 MHz	LVPECL	3.3V	-
XUL535100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XU	100 MHz	LVDS	3.3V	±50ppm
XLL726371.428571I	Renesas晶振	XTAL OSC XO 371.428571MHZ LVDS	XLL	371.428571 MHz	LVDS	2.5V	±25ppm
XLP728161.132000X	Renesas晶振	XTAL OSC XO 161.1320MHZ LVPECL	XPRESSOFXO-PC72	161.132 MHz	LVPECL	2.5V	±20ppm
XUP536212.500JS6I	Renesas晶振	XTAL OSC XO 212.5000MHZ LVPECL	XUP	212.5 MHz	LVPECL	3.3V	±25ppm
XLP726300.000000I	Renesas晶振	XTAL OSC XO 300.0000MHZ LVPECL	XPRESSOFXO-PC72	300 MHz	LVPECL	2.5V	±25ppm
XLL536125.000000I	Renesas有源振蕩器	XTAL OSC XO 125.0000MHZ LVDS SMD	XPRESSOFXO-LC53	125 MHz	LVDS	3.3V	±25ppm
XLH526025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ HCMOS SMD	XPRESSOFXO-HC52	25 MHz	HCMOS	2.5V	±25ppm
XLH735024.576000X	Renesas晶振	XTAL OSC XO 24.5760MHZ HCMOS SMD	XPRESSOFXO-HC73	24.576 MHz	HCMOS	3.3V	±50ppm
XLH535100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ HCMOS	XPRESSOFXO-HC53	100 MHz	HCMOS	3.3V	±50ppm
XLH335024.000000I	Renesas晶振	XTAL OSC XO 24.0000MHZ HCMOS SMD	XPRESSOFXO-HC33	24 MHz	HCMOS	3.3V	±50ppm
XLH730040.000000I	Renesas晶振	XTAL OSC XO 40.0000MHZ HCMOS SMD	XPRESSOFXO-HC73	40 MHz	HCMOS	3.3V	±100ppm
XLH536050.000JS4I8	Renesas晶振	XTAL OSC XO 50.0000MHZ HCMOS SMD	XLH	50 MHz	HCMOS	3.3V	±25ppm
XLH536125.000JS4I8	Renesas晶振	XTAL OSC XO 125.0000MHZ HCMOS	XLH	125 MHz	HCMOS	3.3V	±25ppm
XUP536156.250JS6I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XUP	156.25 MHz	LVPECL	3.3V	±25ppm
XUL536212.500JS6I	Renesas晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	XUL	212.5 MHz	LVDS	3.3V	±25ppm
XPP736625.000000I	Renesas晶振	0625.000000MHZ 3.3VDC LVPECL 705	XPP	625 MHz	LVPECL	3.3V	±25ppm
XLH335027.000000I	Renesas晶振	XTAL OSC XO 27.0000MHZ HCMOS SMD	XPRESSOFXO-HC33	27 MHz	HCMOS	3.3V	±50ppm
XLH335016.625000I	Renesas晶振	XTAL OSC XO 16.6250MHZ HCMOS SMD	XL	16.625 MHz	HCMOS	3.3V	±50ppm
767B-26-1	Renesas晶振	XTAL OSC XO 26.0000MHZ HCMOS SMD	XPRESSOFXO-HC53	26 MHz	HCMOS	3.3V	±50ppm
XLH736059.941610I	Renesas晶振	XTAL OSC XO 59.94161MHZ HCMOS	XPRESSOFXO-HC73	59.94161 MHz	HCMOS	3.3V	±25ppm
XLH735027.648000X	Renesas晶振	XTAL OSC XO 27.6480MHZ HCMOS SMD	XPRESSOFXO-HC73	27.648 MHz	HCMOS	3.3V	±50ppm
XLH535025.040000X	Renesas晶振	XTAL OSC XO 25.0400MHZ HCMOS SMD	XPRESSOFXO-HC53	25.04 MHz	HCMOS	3.3V	±50ppm
XLH530019.660800X	Renesas晶振	XTAL OSC XO 19.6608MHZ HCMOS SMD	XPRESSOFXO-HC53	19.6608 MHz	HCMOS	3.3V	±100ppm
XLH335004.000000I	Renesas晶振	XTAL OSC XO 4.0000MHZ HCMOS SMD	XPRESSOFXO-HC33	4 MHz	HCMOS	3.3V	±50ppm
XLH335066.000000I	Renesas晶振	XTAL OSC XO 66.0000MHZ HCMOS SMD	XPRESSOFXO-HC33	66 MHz	HCMOS	3.3V	±50ppm
XLH735019.200000I	Renesas晶振	XTAL OSC XO 19.2000MHZ HCMOS SMD	XPRESSOFXO-HC73	19.2 MHz	HCMOS	3.3V	±50ppm
XLH735025.830000I	Renesas晶振	XTAL OSC XO 25.8300MHZ HCMOS SMD	XPRESSOFXO-HC73	25.83 MHz	HCMOS	3.3V	±50ppm
XLH735003.932160I	Renesas晶振	XTAL OSC XO 3.93216MHZ HCMOS SMD	XPRESSOFXO-HC73	3.93216 MHz	HCMOS	3.3V	±50ppm
XLH735059.941610I	Renesas晶振	XTAL OSC XO 59.94161MHZ HCMOS	XPRESSOFXO-HC73	59.94161 MHz	HCMOS	3.3V	±50ppm
XLH535077.760000I	Renesas晶振	XTAL OSC XO 77.7600MHZ HCMOS SMD	XPRESSOFXO-HC53	77.76 MHz	HCMOS	3.3V	±25ppm
XLH536014.318180I	Renesas晶振	XTAL OSC XO 14.31818MHZ HCMOS	XPRESSOFXO-HC53	14.31818 MHz	HCMOS	3.3V	±25ppm
XLH738066.660000X	Renesas晶振	XTAL OSC XO 66.6600MHZ HCMOS SMD	XPRESSOFXO-HC73	66.66 MHz	HCMOS	3.3V	±20ppm
XLH738010.000000X	Renesas晶振	XTAL OSC XO 10.0000MHZ HCMOS SMD	XPRESSOFXO-HC73	10 MHz	HCMOS	3.3V	±20ppm
XLH736035.328000I	Renesas晶振	XTAL OSC XO 35.3280MHZ HCMOS SMD	XPRESSOFXO-HC73	35.328 MHz	HCMOS	3.3V	±25ppm
XLH526075.000000I	Renesas晶振	XTAL OSC XO 75.0000MHZ HCMOS SMD	XPRESSOFXO-HC52	75 MHz	HCMOS	2.5V	±25ppm
XLH736049.090800I	Renesas晶振	XTAL OSC XO 49.0908MHZ HCMOS SMD	XPRESSOFXO-HC73	49.0908 MHz	HCMOS	3.3V	±25ppm
XLH738077.760000X	Renesas晶振	XTAL OSC XO 77.7600MHZ HCMOS SMD	XPRESSOFXO-HC73	77.76 MHz	HCMOS	3.3V	±20ppm
XLH536080.000000I	Renesas晶振	XTAL OSC XO 80.0000MHZ HCMOS SMD	XPRESSOFXO-HC53	80 MHz	HCMOS	3.3V	±25ppm
XAH335030.000000I	Renesas晶振	XTAL OSC XO 30.0000MHZ LVCMOS	XAH	30 MHz	LVCMOS	3.3V	±50ppm
XLH53V025.000000X	Renesas晶振	XTAL OSC VCXO 25.0000MHZ HCMOS	XPRESSOFVXO-HC53	25 MHz	HCMOS	3.3V	-
XLP73V775.069300I	Renesas晶振	XTAL OSC VCXO 775.0693MHZ LVPECL	XPRESSOFVXO-PC73	775.0693 MHz	LVPECL	3.3V	-
XLP536150.000000I	Renesas晶振	XTAL OSC XO 150.0000MHZ LVPECL	XPRESSOFXO-PC53	150 MHz	LVPECL	3.3V	±25ppm
XLP735669.312500X	Renesas晶振	XTAL OSC XO 669.3125MHZ LVPECL	XPRESSOFXO-PC73	669.3125 MHz	LVPECL	3.3V	±50ppm
XLH536050.000000I	Renesas晶振	XTAL OSC XO 50.0000MHZ HCMOS SMD	XPRESSOFXO-HC53	50 MHz	HCMOS	3.3V	±25ppm
XLH736004.915200I	Renesas晶振	XTAL OSC XO 4.9152MHZ HCMOS SMD	XPRESSOFXO-HC73	4.9152 MHz	LVCMOS	3.3V	±25ppm
XLL726200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPRESSOFXO-LC72	200 MHz	LVDS	2.5V	±25ppm
XLH735025.000000X	Renesas晶振	XTAL OSC XO 25.0000MHZ HCMOS SMD	XPRESSOFXO-HC73	25 MHz	HCMOS	3.3V	±50ppm
XLH536016.000000I	Renesas晶振	XTAL OSC XO 16.0000MHZ HCMOS SMD晶振	XPRESSOFXO-HC53	16 MHz	HCMOS	3.3V	±25ppm
XLH536024.000000I	Renesas晶振	XTAL OSC XO 24.0000MHZ HCMOS SMD	XPRESSOFXO-HC53	24 MHz	HCMOS	3.3V	±25ppm
XLH736012.000000I	Renesas晶振	XTAL OSC XO 12.0000MHZ HCMOS SMD	XPRESSOFXO-HC73	12 MHz	HCMOS	3.3V	±25ppm
XLH736025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ HCMOS SMD	XPRESSOFXO-HC73	25 MHz	HCMOS	3.3V	±25ppm
XLH736048.000000I	Renesas晶振	XTAL OSC XO 48.0000MHZ HCMOS SMD	XPRESSOFXO-HC73	48 MHz	HCMOS	3.3V	±25ppm
XLH736100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ HCMOS	XPRESSOFXO-HC73	100 MHz	HCMOS	3.3V	±25ppm
XLH736002.048000I	Renesas晶振	XTAL OSC XO 2.0480MHZ HCMOS SMD	XPRESSOFXO-HC73	2.048 MHz	HCMOS	3.3V	±25ppm
XLH536200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ HCMOS	XPRESSOFXO-HC53	200 MHz	HCMOS	3.3V	±25ppm
XLL526200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPRESSOFXO-LC52	200 MHz	LVDS	2.5V	±25ppm
