7050mm,GED有源振蕩器,SMD100.3C(E/D)-52.000MHz,SMD100系列,美國GED晶振,進口有源晶振,石英有源晶振,SMD振蕩器,OSC貼片晶振,XO時鐘晶體振蕩器,7050mm晶體振蕩器,52MHZ晶振,尺寸7.0×5.0mm,頻率52MHZ,HCMOS輸出晶振,空中雷達晶振,路由器晶振,航空電子晶振,測試測量晶振,便攜式設備晶振,以太網晶振.

7050mm,GED有源振蕩器,SMD100.3C(E/D)-52.000MHz,SMD100系列特點:

表面安裝HCMOS/TTL兼容有源振蕩器

HCMOS/TTL輸出

5.0V電源電壓

陶瓷SMD封裝

可用于磁帶和卷軸

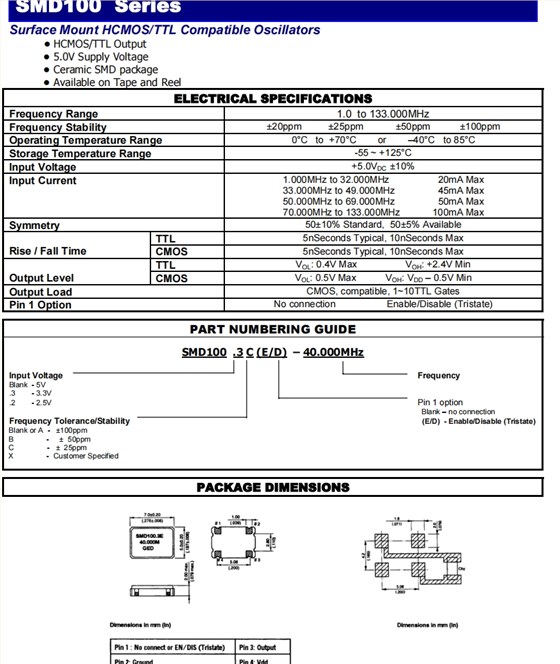

7050mm,GED有源振蕩器,SMD100.3C(E/D)-52.000MHz,SMD100系列 參數表

ELECTRICAL SPECIFICATIONS
Frequency Range			52.000MHz
Frequency Stability			±20ppm±25ppm±50ppm±100ppm
Operating Temperature Range			0°Cto+70°Cor–40°Cto 85°C
Storage Temperature Range			-55 ~ +125°C
Input Voltage			+5.0VDC±10%
Input Current			1.000MHz to 32.000MHz 33.000MHz to 49.000MHz 50.000MHz to 69.000MHz 70.000MHz to 133.000MHz		20mA Max 45mA Max 50mA Max 100mA Max
Symmetry			50±10% Standard,50±5% Available
Rise / Fall Time		TTL	5nSeconds Typical, 10nSeconds Max
		CMOS	5nSeconds Typical, 10nSeconds Max
Output Level		TTL	VOL: 0.4V MaxVOH: +2.4V Min
		CMOS	VOL: 0.5V MaxVOH: VDD– 0.5V Min
Output Load			CMOS, compatible, 1~10TTL Gates
Pin 1 Option			No connectionEnable/Disable (Tristate)

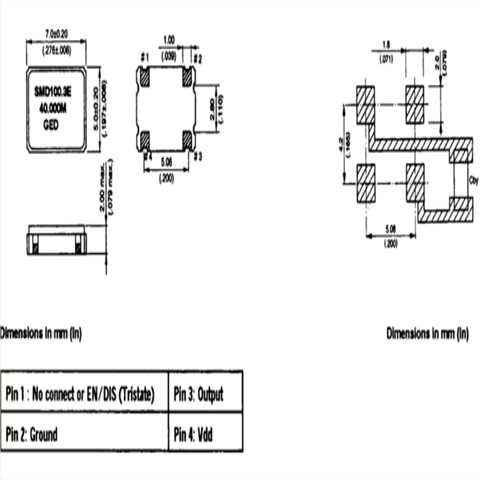

7050mm,GED有源振蕩器,SMD100.3C(E/D)-52.000MHz,SMD100系列 尺寸圖
