1XXB30000MBA,DSB221SDN低電壓晶振,KDS移動電話晶振，尺寸2.5x2.0mm，頻率30MHZ，日本進口晶振，大真空有源晶振，石英晶體振蕩器，TCXO溫補晶振，有源晶體振蕩器，溫度補償晶振，石英有源晶振，2016mm有源晶振，溫補石英晶振，貼片溫補振蕩器，低抖動溫補晶振，低電壓溫補晶振，低相位溫補晶振，低相噪溫補晶振，低耗能溫補晶振，高質量溫補晶振，移動電話溫補晶振，GPS全球定位系統晶振，測試設備有源晶振，空中雷達有源晶振，6G電信有源晶振，交換機有源晶振，網絡應用有源晶振，具有低耗能高質量的特點。
進口溫補晶振產品比較適合用于移動電話，GPS全球定位系統，測試設備，空中雷達，6G電信，交換機，網絡應用等應用。1XXB30000MBA,DSB221SDN低電壓晶振,KDS移動電話晶振.
1XXB30000MBA,DSB221SDN低電壓晶振,KDS移動電話晶振參數表
| 型號名稱 | DSB221SDN (TCXO ) | |||
|---|---|---|---|---|
| 輸出頻率范圍 | 30MHz | |||
| 標準頻率 | 16.3676 MHz/16.367667 MHz/16.368 MHz/16.369 MHz/16.8 MHz/26 MHz/33.6 MHz | |||
| 電源電壓范圍 | +1.68?+3.5V | |||
| 電源電壓( Vcc ) | +1.8V/+2.6V/+2.8V/+3.0V/+3.3V | |||
| 消耗電流 |
+1.5mA max.(f≦26MHz )/+2.0mA max.(26 |
|||
| 輸出電壓 | 0.8Vp-p min.(f≦52MHz ) (削波正弦波/DC-coupled ) | |||
| 輸出負載 | 10kΩ//10pF | |||
| 頻率穩定度 | 常溫偏差 | ±1.5×10-6max.(After 2 reflows ) | ||
| 溫度特性 |
±0.5×10-6±2.5×10-6max./-30?+85℃ ±0.5×10-6±2.5×10-6max./-40?+85℃(Option ) |
|||
| 電源電壓特性 | ±0.2×10-6max.(V抄送±5% ) | |||
| 負荷變動特性 | ±0.2×10-6max.(10kΩ//10pF±10% ) | |||
| 經時變化 | ±1.0×10-6max./year | |||
| 頻率控制 | 控制靈敏度 | - | ||
| 頻率控制極性 | - | |||
| 啟動時間 | 2.0ms max.。 | |||
|
相位噪聲 Offset 100Hz Offset 1kHz Offset 10kHz Offset 100kHz |
[f≦26MHz] -115dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[26MHz -110dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[40MHz -105dBc/Hz -125dBc/Hz -145dBc/Hz -150dBc/Hz |
|
| 包裝單位(1) | 3000pcs./reel(φ180 ) | |||

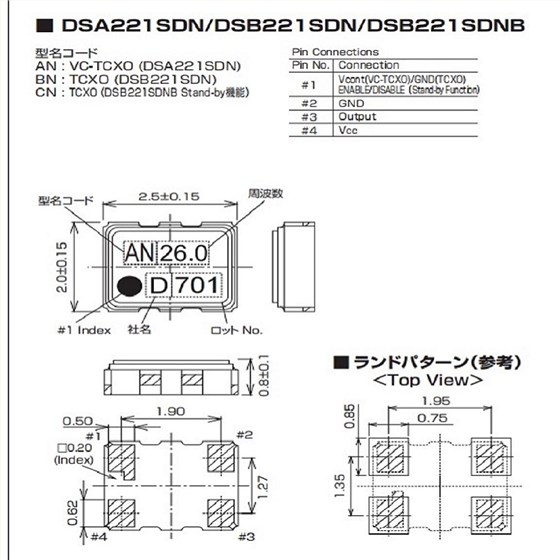

1XXB30000MBA,DSB221SDN低電壓晶振,KDS移動電話晶振 尺寸圖
1XXB30000MBA,DSB221SDN低電壓晶振,KDS移動電話晶振
7050晶振產品特點:
低電壓對應
低相位噪聲
單封裝結構
| 品牌 | 晶振廠家原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320M | 3.3V |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367667M | 3.3V |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367667M | 2.8V |
| KDS晶振 | 1XXD24000MBA | DSB211SDN | 2016 | 24.000M | |
| KDS晶振 | 1XXD26000MAA | DSB211SDN | 2016 | 26.000M | |
| KDS晶振 | 1XXD38400MFA | DSB211SDN | 2016 | 38.400M | |
| KDS晶振 | 1XXD40000PDA | DSB211SDN | 2016 | 40.000M | |
| KDS晶振 | 1XXD32000PBA | DSB211SDN | 2016 | 32.000M | |
| KDS晶振 | 1XXD52000PBA | DSB211SDN | 2016 | 52.000M | |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V |
| KDS晶振 | 7DF01920A09 | DSA211SDN | 2016 | 19.200M | |
| KDS晶振 | 1XXC20000MAA | DSA211SDN | 2016 | 20.000M | |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369M | 3.3V |
| KDS晶振 | 1XXB24000MEA | DSB221SDN | 2520 | 24.000M | |
| KDS晶振 | 1XXB25000PAA | DSB221SDN | 2520 | 25.000M | |
| KDS晶振 | 1XXB26000MAA | DSB221SDN | 2520 | 26.000M | |
| KDS晶振 | 1XXB30000MBA | DSB221SDN | 2520 | 30.000M | |
| KDS晶振 | 1XXB32000PAA | DSB221SDN | 2520 | 32.000M | |
| KDS晶振 | 7ED03360A00 | DSB321SDN | 3225 | 33.6M | |
| KDS晶振 | 7ED01638A03 | DSB321SDN | 3225 | 16.384M | |
| KDS晶振 | 1XSE022579ARC | DSO321SR | 3225 | 22.5792M | |
| KDS晶振 | 1XTQ19200ELA | DSA535SG | 5032 | 19.200M | |
| KDS晶振 | 1XXA26000FSB | DSA221SCL | 2520 | 26.000M | |
| KDS晶振 | 1XXB38400MCB | DSB221SDN | 2520 | 38.4M | 3.3V |
| KDS晶振 | 7EE05200A02 | DSB221SDN | 2520 | 52.000M | |
| KDS晶振 | 1XXA10000MBA | DSA221SDN | 2520 | 10.000M | 3.3V |
| KDS晶振 | 1XXA26000MAA | DSA221SDN | 2520 | 26.000M | |
| KDS晶振 | 1XXA32000MBA | DSA221SDN | 2520 | 32.000M | |
| KDS晶振 | 1XXA20000CAA | DSA221SDN | 2520 | 20.000M | 3.3V |
| KDS晶振 | 1XTW16368FEA | DSB321SCL | 3225 | 16.368M | 2.8V |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6M | 3.3V |
