C3390-10.000,10M石英晶振,瑞斯克電子石英晶振,石英振蕩器,石英晶體振蕩器,抗沖擊晶振,耐撞擊晶振,高頻晶振,帶電壓晶振,無人機晶振,貼片晶振,無人機晶振,洗衣機晶振,比陶瓷更好的抗沖擊性,金屬材質設計有著出色的導熱性和使用壽命,即使在惡劣環(huán)境也還能給產(chǎn)品平穩(wěn)且持續(xù)的運行,深受廣大客戶的喜愛
C3390-10.000,10M石英晶振,瑞斯克電子石英晶振,石英振蕩器
原廠編碼
C3390-10.000
頻率
10MHz
廠家
瑞斯克晶振
型號
C33
頻率偏差
±100ppm
電壓
3.3V
工作溫度
0°C至70°C

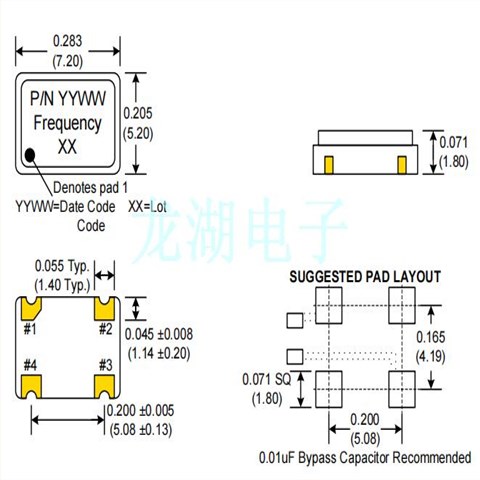

尺寸
7.2*5.2mm
C3390-10.000,10M石英晶振,瑞斯克電子石英晶振,石英振蕩器
| Mfr Part # | Mfr | Series | Frequency | Voltage - Supply | Frequency Stability |
| C3391-4.096 | 斯瑞克晶振 | C33 | 4.096 MHz | 3.3V | ±25ppm |
| CE3391-19.440 | 斯瑞克晶振 | C33 | 19.44 MHz | 3.3V | ±25ppm |
| C3390-1.544 | 斯瑞克晶振 | C33 | 1.544 MHz | 3.3V | ±100ppm |
| C3390-1.843200 | 斯瑞克晶振 | C33 | 1.8432 MHz | 3.3V | ±100ppm |
| C3390-10.000 | 斯瑞克晶振 | C33 | 10 MHz | 3.3V | ±100ppm |
| C3390-12.000 | 斯瑞克晶振 | C33 | 12 MHz | 3.3V | ±100ppm |
| C3390-12.288 | 斯瑞克晶振 | C33 | 12.288 MHz | 3.3V | ±100ppm |
| C3390-12.352 | 斯瑞克晶振 | C33 | 12.352 MHz | 3.3V | ±100ppm |
| C3390-14.318180 | 斯瑞克晶振 | C33 | 14.31818 MHz | 3.3V | ±100ppm |
| C3390-15.360 | 斯瑞克晶振 | C33 | 15.36 MHz | 3.3V | ±100ppm |
| C3390-16.000 | 斯瑞克晶振 | C33 | 16 MHz | 3.3V | ±100ppm |
| C3390-16.384 | 斯瑞克晶振 | C33 | 16.384 MHz | 3.3V | ±100ppm |
| C3390-18.432 | 斯瑞克晶振 | C33 | 18.432 MHz | 3.3V | ±100ppm |
| C3390-19.440 | 斯瑞克晶振 | C33 | 19.44 MHz | 3.3V | ±100ppm |
| C3390-2.048 | 斯瑞克晶振 | C33 | 2.048 MHz | 3.3V | ±100ppm |
| C3390-20.000 | 斯瑞克晶振 | C33 | 20 MHz | 3.3V | ±100ppm |
| C3390-20.480 | 斯瑞克晶振 | C33 | 20.48 MHz | 3.3V | ±100ppm |
| C3390-24.000 | 斯瑞克晶振 | C33 | 24 MHz | 3.3V | ±100ppm |
| C3390-24.576 | 斯瑞克晶振 | C33 | 24.576 MHz | 3.3V | ±100ppm |
| C3390-24.704 | 斯瑞克晶振 | C33 | 24.704 MHz | 3.3V | ±100ppm |
| C3390-25.000 | 斯瑞克晶振 | C33 | 25 MHz | 3.3V | ±100ppm |
| C3390-3.686400 | 斯瑞克晶振 | C33 | 3.6864 MHz | 3.3V | ±100ppm |
| C3390-30.000 | 斯瑞克晶振 | C33 | 30 MHz | 3.3V | ±100ppm |
| C3390-32.000 | 斯瑞克晶振 | C33 | 32 MHz | 3.3V | ±100ppm |
| C3390-32.768 | 斯瑞克晶振 | C33 | 32.768 MHz | 3.3V | ±100ppm |
| C3390-33.000 | 斯瑞克晶振 | C33 | 33 MHz | 3.3V | ±100ppm |
| C3390-33.333 | 斯瑞克晶振 | C33 | 33.333 MHz | 3.3V | ±100ppm |
| C3390-34.368 | 斯瑞克晶振 | C33 | 34.368 MHz | 3.3V | ±100ppm |
| C3390-35.000 | 斯瑞克晶振 | C33 | 35 MHz | 3.3V | ±100ppm |
| C3390-35.328 | 斯瑞克晶振 | C33 | 35.328 MHz | 3.3V | ±100ppm |
| C3390-4.000 | 斯瑞克晶振 | C33 | 4 MHz | 3.3V | ±100ppm |
| C3390-4.096 | 斯瑞克晶振 | C33 | 4.096 MHz | 3.3V | ±100ppm |
| C3390-40.000 | 斯瑞克晶振 | C33 | 40 MHz | 3.3V | ±100ppm |
| C3390-44.736 | 斯瑞克晶振 | C33 | 44.736 MHz | 3.3V | ±100ppm |
| C3390-45.000 | 斯瑞克晶振 | C33 | 45 MHz | 3.3V | ±100ppm |
| C3390-49.152 | 斯瑞克晶振 | C33 | 49.152 MHz | 3.3V | ±100ppm |
| C3390-50.000 | 斯瑞克晶振 | C33 | 50 MHz | 3.3V | ±100ppm |
| C3390-51.840 | 斯瑞克晶振 | C33 | 51.84 MHz | 3.3V | ±100ppm |
| C3390-6.176 | 斯瑞克晶振 | C33 | 6.176 MHz | 3.3V | ±100ppm |
| C3390-7.372800 | 斯瑞克晶振 | C33 | 7.3728 MHz | 3.3V | ±100ppm |
| C3390-8.000 | 斯瑞克晶振 | C33 | 8 MHz | 3.3V | ±100ppm |
