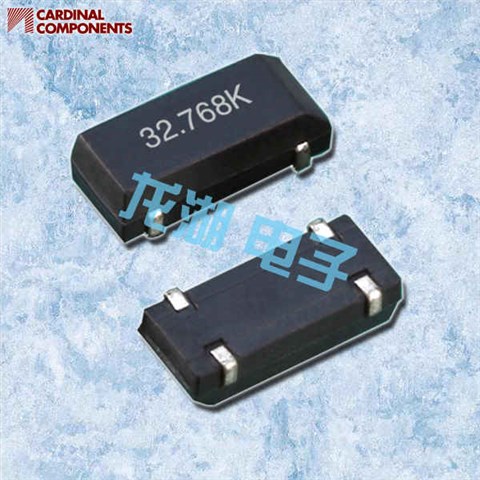

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振，美國進口晶振，Cardinal卡迪納爾晶振，型號：CPFB，編碼為：CPFBZ-A2C4-32.768KD12.5，頻率為：32.768KHz，工作溫度范圍：-40℃至+85℃，負載：12.5pF，小體積晶振尺寸：8.7x3.7x2.4mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，石英晶振，SMD晶振，音叉晶體，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，高質量，耐熱及耐環境等特點。被廣泛應用于：通訊設備晶振，無線藍牙模塊，RTC應用，時鐘晶振，汽車電子晶振，儀器儀表設備，數字顯示等應用。

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振，產品特點：

•封裝是自動化表面安裝組裝和回流實踐的理想選擇
•超小型，石英晶體諧振器
•行業標準足跡
•頻率：32.768 kHz

LH-2

CTS-2

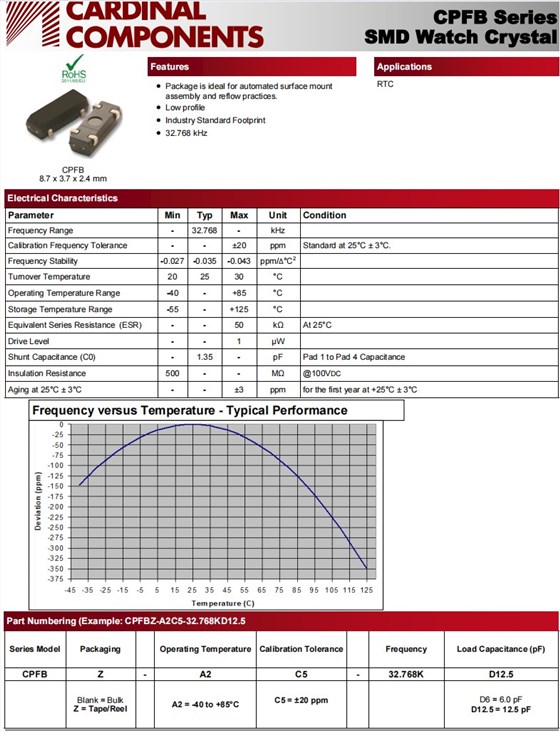

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振,參數表

Parameter	Min	Typ	Max	Unit	Condition
Frequency Range	-	32.768	-	kHz
Calibration Frequency Tolerance	-	-	±20	ppm	Standard at 25°C ± 3°C.
Frequency Stability	-0.027	-0.035	-0.043	ppm/△°C2
Turnover Temperature	20	25	30	°C
Operating Temperature Range	-40	-	+85	°C
Storage Temperature Range	-55	-	+125	°C
Equivalent Series Resistance(ESR)	-	-	50	kΩ	At 25°C
Drive Level	-	-	1	µW
Shunt Capacitance (C0)	-	1.35	-	pF	Pad 1 to Pad 4 Capacitance
Insulation Resistance	500	-	-	MΩ	@100VDC
Aging at 25°C ± 3°C	-	-	±3	ppm	for the first year at +25°C ± 3°C

ECS-1

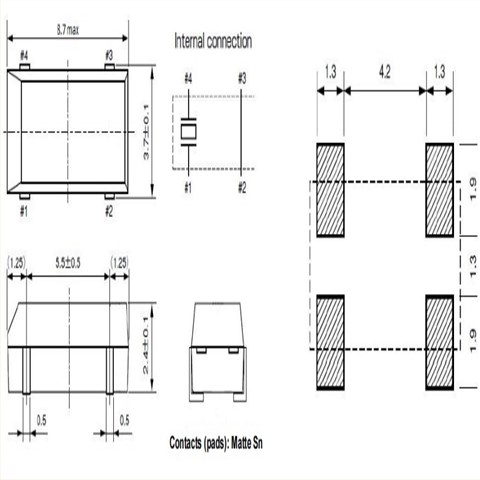

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振,尺寸圖

原廠編碼	廠家	型號	系列	頻率
CPFBZ-A2C4-32.768KD6	Cardinal晶振	CPFB	kHz Crystal (Tuning Fork)	32.768kHz
CPFBZ-A2C5-32.768KD6	Cardinal晶振	CPFB	kHz Crystal (Tuning Fork)	32.768kHz
CTF6-A2C5-32.768KD12.5	Cardinal晶振	CTF6	kHz Crystal (Tuning Fork)	32.768kHz
CX5Z-A5B2C5-70-7.37280D18	Cardinal晶振	CX5	MHz Crystal	7.3728MHz
CPFBZ-A2C4-32.768KD12.5	Cardinal晶振	CPFB	kHz Crystal (Tuning Fork)	32.768kHz
CX5Z-ARB2C5-70-7.3728D18	Cardinal晶振	CX5	MHz Crystal	7.3728MHz
CX325Z-A5B2C5-50-20.0D18	Cardinal晶振	CX325	MHz Crystal	20MHz
CX635A-A5B2C3-40-18.432D13	Cardinal晶振	CX635A	MHz Crystal	18.432MHz
CPFBZ-A2C5-32.768KD12.5	Cardinal晶振	CPFB	kHz Crystal (Tuning Fork)	32.768kHz
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CX5	MHz Crystal	27MHz
CX5Z-A5B2C5-40-24.0D18	卡迪納爾晶振	CX5	MHz Crystal	24MHz
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CX5	MHz Crystal	24.576MHz
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CX5	MHz Crystal	8MHz
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CX5	MHz Crystal	24MHz
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CX5	MHz Crystal	16MHz
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CX5	MHz Crystal	16MHz
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CX5	MHz Crystal	10MHz
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CX5	MHz Crystal	8MHz
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CX5	MHz Crystal	25MHz
CPFBZ-A2C5-32.768D6	Cardinal晶振	CPFB	kHz Crystal (Tuning Fork)	32.768kHz
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CX5	MHz Crystal	12MHz
CX5Z-A5B2C5-40-12.0D18	Cardinal晶振	CX5	MHz Crystal	12MHz
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CX5	MHz Crystal	10MHz
CX5Z-A5B2C5-40-25D18	Cardinal晶振	CX5	MHz Crystal	25MHz
CX635BZ-A1B2C3-80-14.31818D20	Cardinal晶振	CX635B	MHz Crystal	14.31818MHz
C49X-A3B1C1-40-8.0D16	Cardinal晶振	C49	MHz Crystal	8MHz
