首頁 愛普生晶振

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005

產品簡介


EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005，尺寸為3.2*2.5mm,頻率為125MHZ,輸出邏輯HCSL，差分晶體振蕩器，進口有源差分晶振，OSC差分晶振，HCSL差分輸出晶振，交換機差分振蕩器，低電壓差分晶振，低相位差分振蕩器，低抖動差分晶振，6G放大器差分晶振，6G模塊差分振蕩器，通信產品差分晶振，125MHZ差分晶振，產品具備高質量低抖動低電壓的特點。

差分貼片晶振是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，HCSL具有低電平,低抖動，低功耗，低功耗等特性。EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005.


產品詳情

Abracon-2

LH-1


EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005，尺寸為3.2*2.5mm,頻率為125MHZ,輸出邏輯HCSL，差分晶體振蕩器，進口有源差分晶振，OSC差分晶振，HCSL差分輸出晶振，交換機差分振蕩器，低電壓差分晶振，低相位差分振蕩器，低抖動差分晶振，6G放大器差分晶振，6G模塊差分振蕩器，通信產品差分晶振，125MHZ差分晶振，產品具備高質量低抖動低電壓的特點。

差分貼片晶振是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，HCSL具有低電平,低抖動，低功耗，低功耗等特性。EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005.

LH-2

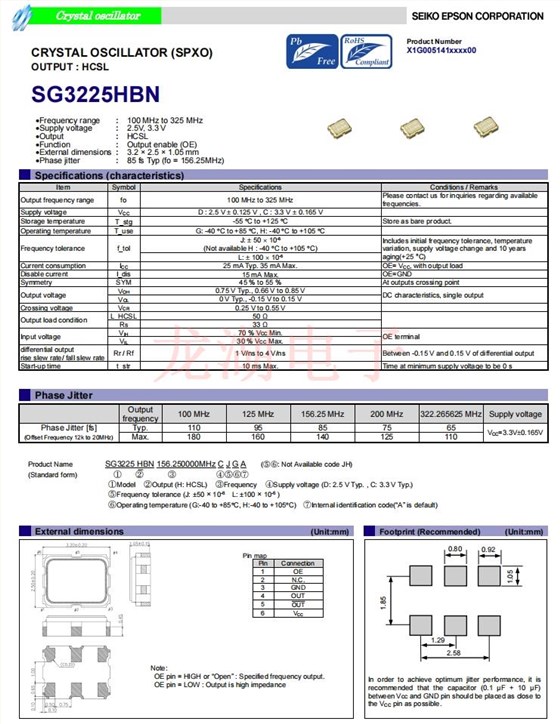

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005參數表

Specifications (characteristics)
Item Symbol Specifications Conditions / Remarks
Output frequency range fo 125MHz Please contact us for inquiries regarding available
frequencies.
Supply voltage VCC D : 2.5 V±0.125 V , C : 3.3 V±0.165 V
Storage temperature T_stg -55°C to +125°C Store as bare product.
Operating temperature T_use G: -40°C to +85°C , H: -40°C to +105°C
Frequency tolerance f_tol J:±50×10-6
(Not available H : -40°C to +105°C) 		Includes initial frequency tolerance, temperature
variation, supply voltage change and 10 years
aging(+25 °C)
L:±100×10-6
Current consumption ICC 25 mATyp. 35 mA Max. OE= VCC, with output load
Disable current I_dis 15 mA Max. OE=GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage VOH 0.75 V Typ., 0.66 V to 0.85 V DC characteristics, single output
VOL 0 V Typ., -0.15 V to 0.15 V
Crossing voltage VCR 0.25 V to 0.55 V
Output load condition L_HCSL 50 Ω
RS 33 Ω
Input voltage VIH 70 % VCCMin. OE terminal
VIL 30 % VCCMax.
differential output
rise slew rate/ fall slew rate 		Rr / Rf 1 V/ns to 4 V/ns Between -0.15 V and 0.15 V of differential output
Start-up time t_str 10 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter
Output
frequency 		100 MHz 125 MHz 156.25 MHz 200 MHz 322.265625 MHz Supply voltage
Phase Jitter [fs]
(Offset Frequency 12k to 20MHz) 		Typ. 110 95 85 75 65 VCC=3.3V±0.165V
Max. 180 160 140 125 110
LH-3Abracon-1

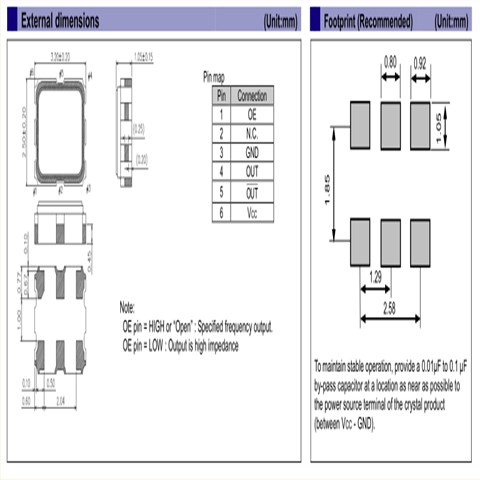

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005 尺寸圖SG3225HBN_3225

有源晶振產品特性：

頻率范圍:100mhz至325mhz

電源電壓:2.5V, 3.3 V

輸出:HCSL

功能:輸出使能(OE)

外部尺寸:3.2×2.5×1.05mm

相位抖動:85 fs類型(fo = 156.25MHz)SG3225HBN 1

更多相關EPSON晶振型號

編碼 品牌 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1G0042410001 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410002 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410004 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410005 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410006 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410007 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410008 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410009 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410010 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410011 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410012 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410014 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410015 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410016 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410017 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410020 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410021 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410023 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410024 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410025 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410026 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410027 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410028 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410029 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410030 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410031 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410033 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410034 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410035 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410036 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410039 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410040 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410042 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410043 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410044 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410045 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410046 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410047 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410048 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410049 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410050 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410052 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410053 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410054 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410055 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410058 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410059 愛普生有源振蕩器 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410061 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410062 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410063 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410064 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410065 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410066 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410067 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410068 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410069 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410071 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410072 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410073 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410074 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410079 愛普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410080 愛普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410083 愛普生晶振 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410084 愛普生晶振 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
