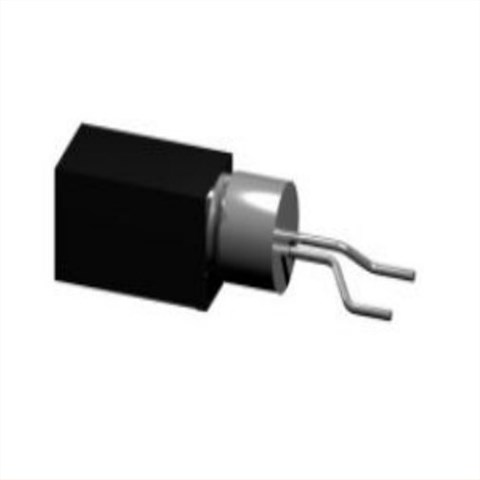

WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振，美國進口晶振，MMD晶振，Mmdcomp麥迪康晶振，型號：WC26SM，編碼為：WC26SMFD-32.768KHZ-T，精度：±20ppm，頻率為：32.768KHz，負載：12.5pF，工作溫度范圍廣：-40℃至+85℃，小體積晶振尺寸：2.0x6.0mm，音叉晶振，插件晶體，石英晶振，表面安裝時鐘晶體，無源晶振，石英晶體，彎腳插件晶振，石英晶體諧振器，無鉛環保晶振。具有小型緊湊型，高性能晶振，耐熱及耐環境特點，符合RoHS。應用于：通訊設備晶振，藍牙模塊，時鐘晶振，儀器儀表設備，電腦主板，數字顯示設備，智能家居等應用。

WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振，產品特點：

表面安裝式時鐘晶體
頻率：32.768KHz
小型緊湊型
符合RoHS

LH-2

CTS-2

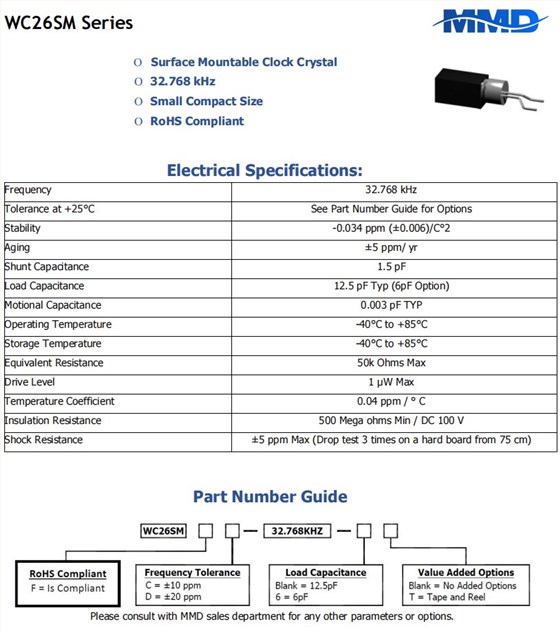

WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振,參數表

Frequency		32.768 kHz
Tolerance at +25°C		See Part Number Guide for Options
Stability		-0.034 ppm (±0.006)/C°2
Aging		±5 ppm/ yr
Shunt Capacitance		1.5 pF
Load Capacitance		12.5 pF Typ (6pF Option)
Motional Capacitance		0.003 pF TYP
Operating Temperature		-40°C to +85°C
Storage Temperature		-40°C to +85°C
Equivalent Resistance		50k Ohms Max
Drive Level		1 µW Max
Temperature Coefficient		0.04 ppm / ° C
Insulation Resistance		500 Mega ohms Min / DC 100 V
Shock Resistance		±5 ppm Max (Drop test 3 times on a hard board from 75 cm)

LH-3

ECS-1

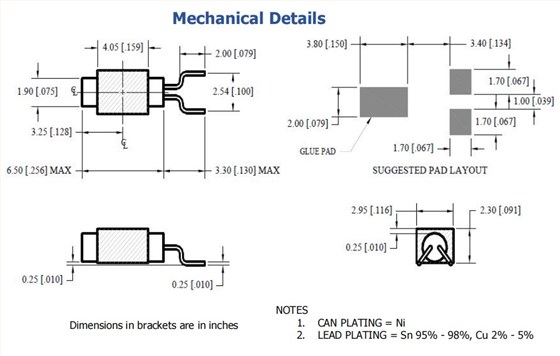

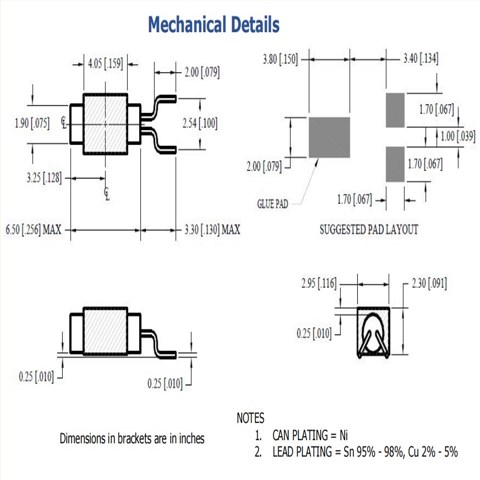

WC26SMFD-32.768KHZ-T,WC26SM,32.768KHz,Mmdcomp晶振,尺寸圖

石英晶體	品牌	描述	頻率	系列	負載電容
WC146SMF-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC146SM	12.5pF
MMC-463F-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	MMC	12.5pF
WC315-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC315	12.5pF
DF18CC1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 18PF SMD	16 MHz	D	18pF
DF18CC1-10.240MHZ-T	Mmdcomp晶振	CRYSTAL 10.2400MHZ 18PF SMD	10.24 MHz	D	18pF
DF18CC1-13.000MHZ-T	Mmdcomp晶振	CRYSTAL 13.0000MHZ 18PF SMD	13 MHz	D	18pF
T10GC1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 10PF SMD	20 MHz	T	10pF
X10CB1-40.000MHZ-T	Mmdcomp晶振	CRYSTAL 40.0000MHZ 10PF SMD	40 MHz	X	10pF
X10CB1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 10PF SMD	24.576 MHz	X	10pF
X10CB1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 10PF SMD	25 MHz	X	10pF
DF18CC1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 18PF SMD	20 MHz	D	18pF
DF18CC1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 18PF SMD	24.576 MHz	D	18pF
DF18CC1-18.000MHZ-T	Mmdcomp晶振	CRYSTAL 18.0000MHZ 18PF SMD	18 MHz	D	18pF
DF18CC1-12.000MHZ-T	Mmdcomp晶振	CRYSTAL 12.0000MHZ 18PF SMD	12 MHz	D	18pF
DF18CC1-13.500MHZ-T	Mmdcomp晶振	CRYSTAL 13.5000MHZ 18PF SMD	13.5 MHz	D	18pF
DF18CC1-24.000MHZ-T	Mmdcomp晶振	CRYSTAL 24.0000MHZ 18PF SMD	24 MHz	D	18pF
DF18CC1-12.288MHZ-T	Mmdcomp晶振	CRYSTAL 12.2880MHZ 18PF SMD	12.288 MHz	D	18pF
T10GC1-24.000MHZ-T	無源晶振	CRYSTAL 24.0000MHZ 10PF SMD	24 MHz	T	10pF
T10GC1-19.200MHZ-T	Mmdcomp晶振	CRYSTAL 19.2000MHZ 10PF SMD	19.2 MHz	T	10pF
T10GC1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 10PF SMD	24.576 MHz	T	10pF
T10GC1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 10PF SMD	16 MHz	T	10pF
T10GC1-48.000MHZ-T	Mmdcomp晶振	CRYSTAL 48.0000MHZ 10PF SMD	48 MHz	T	10pF
X10CB1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 10PF SMD	16 MHz	X	10pF
X10CB1-16.3676MHZ-T	Mmdcomp晶振	CRYSTAL 16.3676MHZ 10PF SMD	16.3676 MHz	X	10pF
X10CB1-24.000MHZ-T	Mmdcomp晶振	CRYSTAL 24.0000MHZ 10PF SMD	24 MHz	X	10pF
WC26SMFD-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC26SM	12.5pF
WC38F-32.768KHZ	Mmdcomp晶振	2 PIN THROUGH HOLE METAL PACKAGE	32.768 kHz	WC	12.5pF
WC26F-32.768KHZ	Mmdcomp晶振	2 PIN THROUGH HOLE METAL PACKAGE	32.768 kHz	WC	12.5pF
X10CB1-48.000MHZ-T	Mmdcomp晶振	CRYSTAL 48.0000MHZ 10PF SMD	48 MHz	X	10pF
X10CB1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 10PF SMD	20 MHz	X	10pF
DF18CC1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 18PF SMD	25 MHz	D	18pF
X10CB1-19.200MHZ-T	Mmdcomp晶振	CRYSTAL 19.2000MHZ 10PF SMD	19.2 MHz	X	10pF
T10GC1-16.3676MHZ-T	Mmdcomp晶振	CRYSTAL 16.3676MHZ 10PF SMD	16.3676 MHz	T	10pF
T10GC1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 10PF SMD	25 MHz	T	10pF
T10GC1-40.000MHZ-T	Mmdcomp晶振	CRYSTAL 40.0000MHZ 10PF SMD	40 MHz	T	10pF
