WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振，美國進口晶振，Mmdcomp麥迪康晶振，型號：WC315系列，編碼為：WC315-32.768KHZ-T，頻率為：32.768KHz，負載：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.9mm，兩腳貼片晶振，無源晶振，3215晶振，石英晶體，SMD晶振，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。應用于：移動通訊晶振，鐘表電子晶振，儀器儀表設備晶振，無線藍牙晶振，平板電腦晶振，智能家居晶振，數碼電子等應用。
WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,產品特點:
陶瓷SMD音叉晶體
頻率：32.768KHz
符合RoHS
提供帶卷包裝

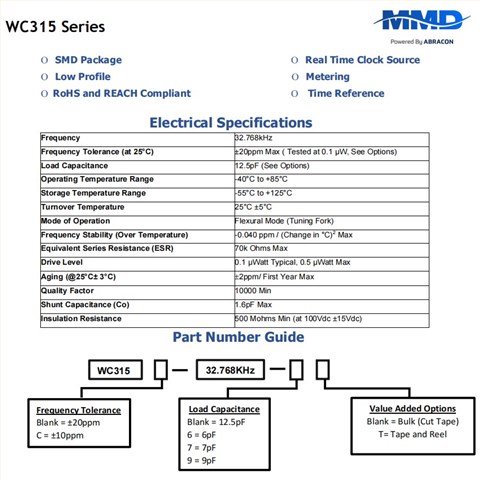

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,參數表
Frequency
32.768kHz
Frequency Tolerance (at 25°C)
±20ppm Max ( Tested at 0.1 µW, See Options)
Load Capacitance
12.5pF (See Options)
Operating Temperature Range
-40°C to +85°C
Storage Temperature Range
-55°C to +125°C
Turnover Temperature
25°C ±5°C
Mode of Operation
Flexural Mode (Tuning Fork)
Frequency Stability (Over Temperature)
-0.040 ppm / (Change in °C)2Max
Equivalent Series Resistance (ESR)
70k Ohms Max
Drive Level
0.1 µWatt Typical, 0.5 µWatt Max
Aging (@25°C± 3°C)
±2ppm/ First Year Max
Quality Factor
10000 Min
Shunt Capacitance (Co)
1.6pF Max
Insulation Resistance
500 Mohms Min (at 100Vdc ±15Vdc)

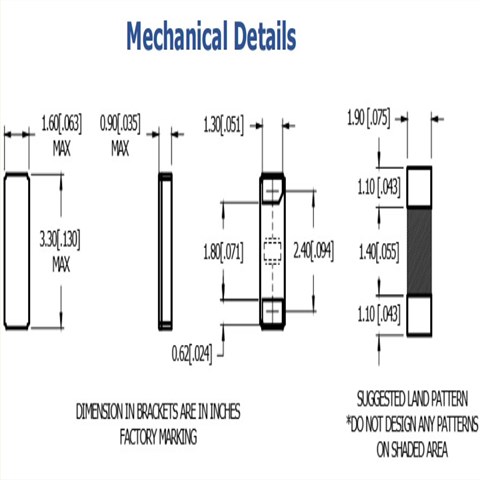

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,尺寸圖
