智能家居的首選既然是3225mm無源晶體?Q22FA23V0035816，經過幾十年的沉淀，愛普生公司憑著生產大量優質的晶振產品，成功吸引廣大用戶的關注，并以高于用戶的需求為目標，持續不斷向市場供應優良的產品，同時致力于打造自身最硬核的競爭力，開發高性價比無源晶振非常適合當下市場的需求，能夠滿足各個行業的應用程序，并提供專業化的技術和一流的服務。

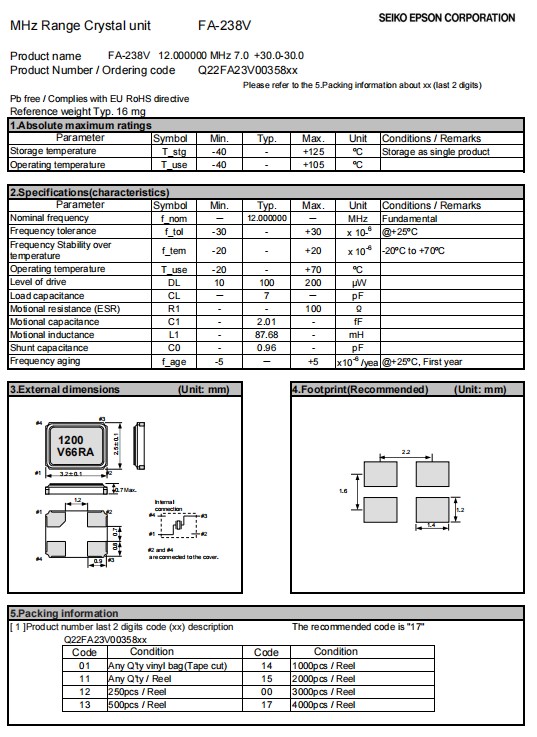

智能家居的首選既然是3225mm無源晶體?Q22FA23V0035816，日本進口愛普生晶振，F(xiàn)A-238V是一款超小型無源晶振，石英晶體諧振器，編碼Q22FA23V0035816，頻率12.000000兆赫，尺寸(LxWxH)3.2 x 2.5 x 0.7 mm，客戶負載電容7pf，頻率公差+ / -30 ppm，F(xiàn)o / temp。特征公差+ / -20 ppm，溫度范圍-20至+70°C，具有低損耗，低耗能，耐熱，耐壓等特點，特別適用于儀器儀表，智能家居，數碼電子等產品，產品性能卓越，品質有保障。

產品編碼	日本進口晶振	型號	頻率	負載	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range	ESR [Max]
Q22FA23V0030716	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	8 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0031016	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	20 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0031416	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	10 pF	+/-50 ppm	+/-50 ppm	-40 to +85 °C	≤ 80 Ω
Q22FA23V0032616	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	12 pF	+/-10 ppm	+/-23 ppm	-40 to +85 °C	≤ 80 Ω
Q22FA23V0032716	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12 pF	+/-20 ppm	+/-23 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0033216	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	18 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0035816	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	7 pF	+/-30 ppm	+/-20 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0036716	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	9 pF	+/-50 ppm	+/-30 ppm	-20 to +75 °C	≤ 80 Ω
Q22FA23V0037216	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	18 pF	+/-20 ppm	+/-30 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0037316	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	16 pF	+/-50 ppm	+/-30 ppm	-40 to +85 °C	≤ 80 Ω
Q22FA23V0037416	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	9 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0037516	3.2 x 2.5 x 0.7mm	FA-238V	12.800000 MHz	15 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0037916	3.2 x 2.5 x 0.7mm	FA-238V	13.300000 MHz	10 pF	+/-50 ppm	+/-50 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0038016	3.2 x 2.5 x 0.7mm	FA-238V	12.993000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0038516	3225石英晶振	FA-238V	12.800000 MHz	15 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 100 Ω
Q22FA23V0039616	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	7 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0039716	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	12 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0040016	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-15 ppm	+/-15 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0040116	3.2 x 2.5 x 0.7mm	FA-238V	13.500000 MHz	10 pF	+/-15 ppm	+/-15 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0041916	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	15 pF	+/-15 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
