常用于晶振產品的當屬電子產品，作為電子產品與晶振的關系，相當于第二個靈魂，也是元器件中缺一不可的配件，當下市場中最常用到晶振產品的就有手機，藍牙，通信設備等領域，而晶振中又可分為進口晶振和國產晶振，進口晶振在價格上面沒有太大優勢，性能較于國產晶振更加出色.隨著國家大力發展半導體和國內研發實力的提升，我們的有源晶振已不遜色于進口的頂級產品，甚至在某些地方還要更勝一籌。EPSON進口有源晶振價格趨勢由什么決定?X1G005601006900

石英晶體振蕩器的應用：1、石英鐘走時準、耗電省、經久耐用為其最大優點。不論是老式石英鐘或是新式多功能石英鐘都是以石英晶體振蕩器為核心電路，其頻率精度決定了電子鐘表的走時精度。石英晶體振蕩器原理的示意所示，其中V1和V2構成CMOS反相器石英晶體Q與振蕩電容C1及微調電容C2構成振蕩系統，這里石英晶體相當于電感。振蕩系統的元件參數確定了振頻率。一般Q、C1及C2均為外接元件。另外R1為反饋電阻，R2為振蕩的穩定電阻，它們都集成在電路內部。故無法通過改變C1或C2的數值來調整走時精度。但此時仍可用加接一只電容C有方法，來改變振蕩系統參數，以調整走時精度。

Product Number	愛普生晶振型號	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.	I [Max]
X1G005601006700	SG-8018CG	7.372800 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601006800	SG-8018CG	11.520000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601006900	SG-8018CG	8.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601007000	SG-8018CG	13.333000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601007100	SG-8018CG	28.636360 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601007200	SG-8018CG	44.236800 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601007300	SG-8018CG	130.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 8.1 mA
X1G005601007400	SG-8018CG	8.192000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601007500	SG-8018CG	2.097152 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601007600	SG-8018CG	49.824000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601007700	SG-8018CG	133.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 8.1 mA
X1G005601007800	SG-8018CG	19.200000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601007900	SG-8018CG	41.439990 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601008000	SG-8018CG	16.608000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601008100	SG-8018CG	33.333000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601008200	SG-8018CG	7.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601008300	SG-8018CG	33.176000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601008400	SG-8018CG	33.333000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601008500	SG-8018CG	7.372800 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601008600	SG-8018CG	4.800000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA

EPSON進口有源晶振價格趨勢由什么決定?X1G005601006900，根據電子鐘表走時的快慢，調整電容有兩種接法：若走時偏快，則可在石英晶體兩端并接電容C。此時系統總電容加大，振蕩頻率變低，走時減慢。若走時偏慢，則可在晶體支路中串接電容C。此時系統的總電容減小，振蕩頻率變高，走時增快。只要經過耐心的反復試驗，就可以調整走時精度。因此，晶振可用于時鐘信號發生器。2、隨著電視技術的發展，近 來 彩電多采用500kHz或503kHz的晶體振蕩器作為行、場電路的振蕩源，經1/3的分頻得到15625Hz的行頻，其穩定性和可靠性大為提高。而且晶振價格便宜，更換容易，也許會有人好奇，進口有源晶振價格趨勢由什么決定呢，往往由于市場的需求量決定其當前的價值，所以產品成為稀缺，價格也會出現上漲趨勢。

Product Number	愛普生晶振型號	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.	I [Max]
X1G005601008700	SG-8018CG	18.400000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601008800	SG-8018CG	4.915200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601008900	SG-8018CG	133.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 8.1 mA
X1G005601009000	SG-8018CG	2.800000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601009100	SG-8018CG	22.579200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601009200	SG-8018CG	0.680000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601009300	SG-8018CG	46.339200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601009400	SG-8018CG	60.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 5.2 mA
X1G005601009500	SG-8018CG	3.579545 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601009700	SG-8018CG	16.666600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601009800	SG-8018CG	13.333333 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601009900	SG-8018CG	54.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 5.2 mA
X1G005601010000	SG-8018CG	3.686400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601010200	SG-8018CG	22.579200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601010300	SG-8018CG	64.478100 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 5.2 mA
X1G005601010400	SG-8018CG	59.737100 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 5.2 mA
X1G005601010500	SG-8018CG	64.342677 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 5.2 mA
X1G005601010600	SG-8018CG	43.540157 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601010700	SG-8018CG	25.600000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601010800	SG-8018CG	19.660800 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA

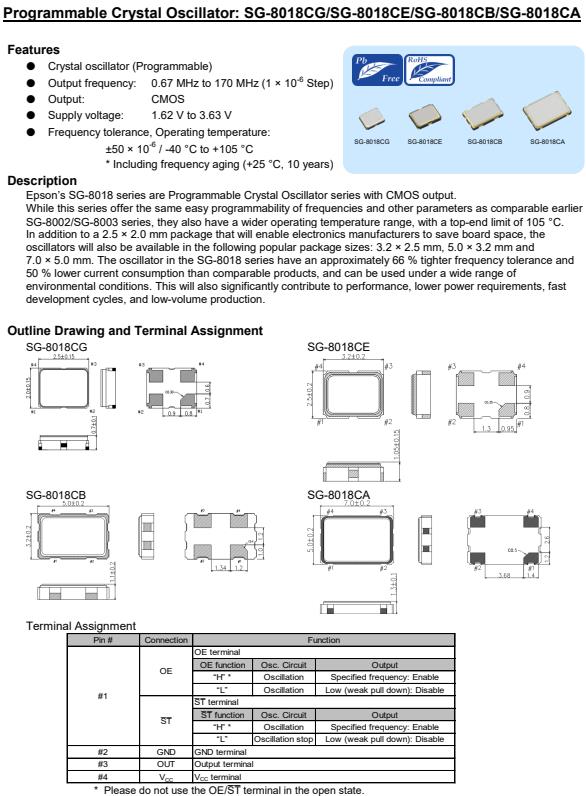

愛普生推出了SG-8018CG晶振，進口有源晶振，編碼X1G005601006900，頻率8.000000兆赫，輸出WaveCMOS，供電電壓1.62至3.63 V，尺寸(長×寬×高)2.50 × 2.00 × 0.80毫米，工作溫度-40到+105°C，頻率公差±50ppm，額外的OptionsN /，OSC TypeProgrammable Clock時鐘OSC.
