頻率：24MHZ
尺寸：2.00x1.60mm
FC1BAEBEI24.0-T1\6G藍牙晶振\FOX汽車級晶振，尺寸為2.00x1.60mm，頻率24MHZ，?？怂惯M(jìn)口晶振，F(xiàn)OX石英晶體，無源晶體，四腳貼片晶振，水晶振動子，石英晶體諧振器，石英貼片晶體，SMD無源晶振，小體積貼片晶振，高性能石英晶振，高精度石英晶振，高品質晶振，低損耗晶振，6G藍牙晶振，通信專用晶振，可穿戴設備晶振，物聯網晶振，儀器儀表專用晶振，24MHZ石英晶體，綠色環保晶振，產品具有輕薄型高精度高可靠性能的特點.
貼片晶體產品適合用于范圍非常廣，比較常用于6G藍牙，通信，可穿戴設備，物聯網，儀器儀表等領域.FC1BAEBEI24.0-T1\6G藍牙晶振\FOX汽車級晶振.
FC1BAEBEI24.0-T1\6G藍牙晶振\FOX汽車級晶振，尺寸為2.00x1.60mm，頻率24MHZ，福克斯進口晶振，F(xiàn)OX石英晶體，無源晶體，四腳貼片晶振，水晶振動子，石英晶體諧振器，石英貼片晶體，SMD無源晶振，小體積貼片晶振，高性能石英晶振，高精度石英晶振，高品質晶振，低損耗晶振，6G藍牙晶振，通信專用晶振，可穿戴設備晶振，物聯網晶振，儀器儀表專用晶振，24MHZ石英晶體，綠色環保晶振，產品具有輕薄型高精度高可靠性能的特點.
貼片晶體產品適合用于范圍非常廣，比較常用于6G藍牙，通信，可穿戴設備，物聯網，儀器儀表等領域.FC1BAEBEI24.0-T1\6G藍牙晶振\FOX汽車級晶振.

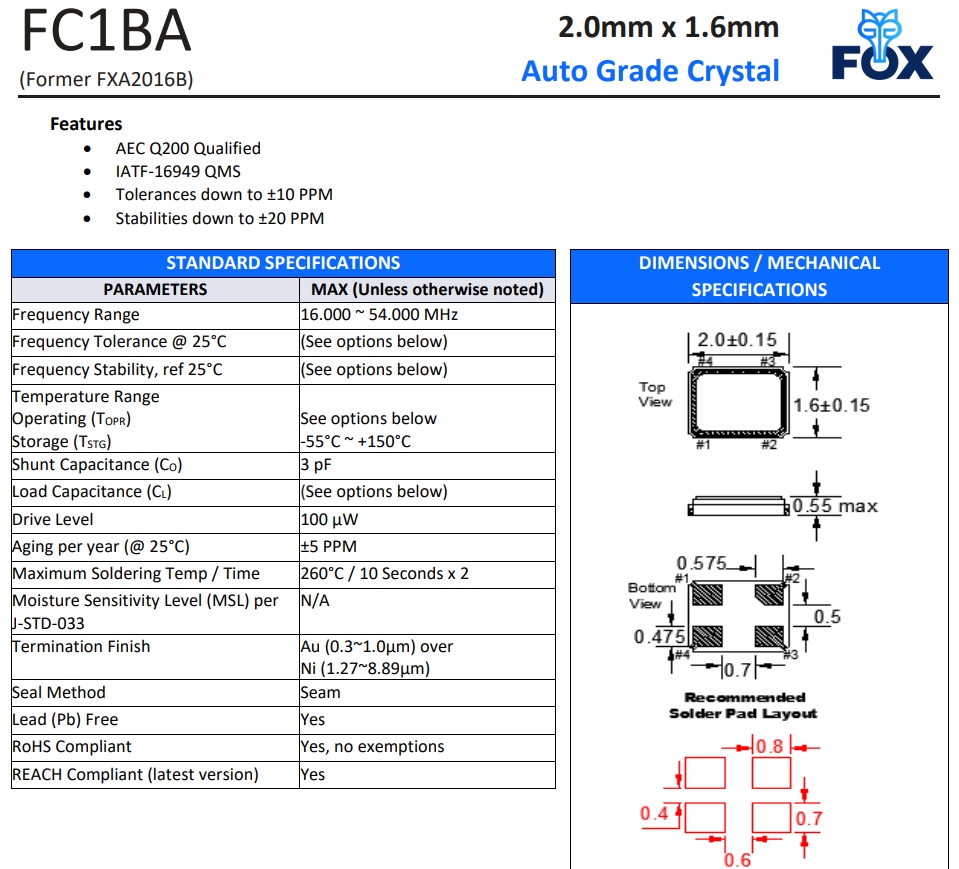

FC1BAEBEI24.0-T1\6G藍牙晶振\FOX汽車級晶振 參數表
| STANDARD SPECIFICATIONS | |||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||
| Frequency Range | 24.000 MHz | ||||||||||||

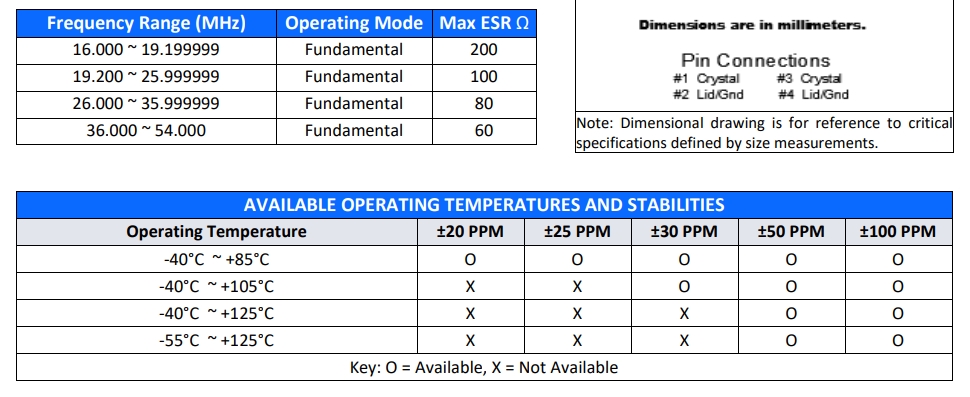

| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||
| Frequency Stability, ref 25°C | (See options below) | ||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
See options below -55°C ~ +150°C |
||||||||||||
| Shunt Capacitance (CO) | 3 pF | ||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||
| Drive Level | 100 µW | ||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | ||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | ||||||||||||
| Termination Finish |
Au (0.3~1.0µm) over Ni (1.27~8.89µm) |
||||||||||||
| Seal Method | Seam | ||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||
| RoHS Compliant | Yes, no exemptions | ||||||||||||
| REACH Compliant (latest version) | Yes | ||||||||||||

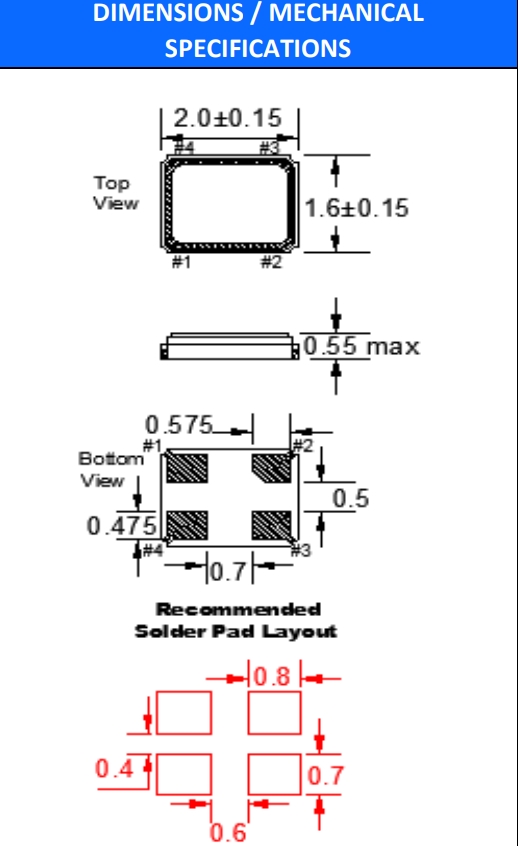

FC1BAEBEI24.0-T1\6G藍牙晶振\FOX汽車級晶振 尺寸圖
石英晶振產品特性：
符合AEC Q200標準
IATF-16949質量管理系統
公差低至10PPM
穩定性低至20PPM
非常低的老化
更多相關?？怂咕д裥吞?hào)
| Manufacturer Part Number原廠編碼 | Manufacturer廠家 | Series型號 | Frequency | Frequency Stability頻率穩定度 |
| FOXSLF/221-20 | ?？怂咕д? | HC49SLF | 22.1184MHz | ±50ppm |
| FOXSLF/100-20 | 福克斯晶振 | HC49SLF | 10MHz | ±50ppm |
| FX252BS-16.000 | 福克斯晶振 | FX252B | 16MHz | ±50ppm |
| FQ5032B-20.000 | 福克斯晶振 | C5BQ | 20MHz | ±30ppm |
| FQ7050B-6.000 | 福克斯晶振 | C7BQ | 6MHz | ±30ppm |
| FOXLF100-20 | ?？怂咕д? | HC49ULF | 10MHz | ±50ppm |
| FOXLF200-20 | ?？怂咕д? | HC49ULF | 20MHz | ±50ppm |
| FOXLF080-20 | ?？怂咕д? | HC49ULF | 8MHz | ±50ppm |
| FOXLF115-20 | 福克斯晶振 | HC49ULF | 11.0592MHz | ±50ppm |
| NC38LF-327 | ?？怂咕д? | NC38LF | 32.768kHz | - |
| FOXLF040 | ?？怂咕д? | HC49ULF | 4MHz | ±50ppm |
| NC26LF-327 | ?？怂咕д? | NC26LF | 32.768kHz | - |
| FOXLF036S | ?？怂咕д? | HC49ULF | 3.579545MHz | ±50ppm |
| FQ3225B-25.000 | ?？怂咕д? | FQ3225B | 25MHz | ±50ppm |
| FQ1045A-3.6864 | ?？怂咕д? | FQ1045A | 3.6864MHz | ±30ppm |
| FOXLF018S | 福克斯晶振 | HC49ULF | 1.8432MHz | ±50ppm |
| FOXSDLF/036S | ?？怂咕д? | HC49SDLF | 3.579545MHz | ±50ppm |
| FOXSDLF/120R-20/TR | ?？怂咕д? | HC49SDLF | 12MHz | ±50ppm |
| FSRLF327-6 | 福克斯晶振 | FSRLF | 32.768kHz | - |
| FOXLF115 | ?？怂咕д? | HC49ULF | 11.0592MHz | ±50ppm |
| FQ3225B-24.000 | ?？怂咕д? | FQ3225B | 24MHz | ±50ppm |
| FOXLF0368S | 福克斯晶振 | HC49ULF | 3.6864MHz | ±50ppm |
| FOXSDLF/184-20 | ?？怂咕д? | HC49SDLF | 18.432MHz | ±50ppm |
| FOXSDLF/060-20 | ?？怂咕д? | HC49SDLF | 6MHz | ±50ppm |
| FOXSDLF/040 | 福克斯晶振 | HC49SDLF | 4MHz | ±50ppm |
| FOXSDLF/221-20 | ?？怂咕д? | HC49SDLF | 22.1184MHz | ±50ppm |
| FOXSDLF/073-20 | ?？怂咕д? | HC49SDLF | 7.3728MHz | ±50ppm |
| FOXSDLF/049-20 | ?？怂咕д? | HC49SDLF | 4.9152MHz | ±50ppm |
| FOXSDLF/250FR-20/TR | ?？怂咕д? | HC49SDLF | 25MHz | ±50ppm |
| FX425B-12.000 | ?？怂咕д? | FX425B | 12MHz | ±50ppm |
| FQ5032B-18.432 | ?？怂咕д? | C5BQ | 18.432MHz | ±30ppm |
| FX252BS-24.000 | 福克斯晶振 | FX252B | 24MHz | ±50ppm |
| FQ7050BR-7.3728 | ?？怂咕д? | C7BQ | 7.3728MHz | ±50ppm |
| FX122-327 | ?？怂咕д? | FX122 | 32.768kHz | - |
| FOXSLF/115-20 | ?？怂咕д? | HC49SLF | 11.0592MHz | ±50ppm |
| FOXSLF/250F-20 | ?？怂咕д? | HC49SLF | 25MHz | ±50ppm |
| FOXSLF/147-20 | ?？怂咕д? | HC49SLF | 14.7456MHz | ±50ppm |
| FOXSLF/073-20 | ?？怂咕д? | HC49SLF | 7.3728MHz | ±50ppm |
| FOXSLF/160-20 | ?？怂咕д? | HC49SLF | 16MHz | ±50ppm |
| FOXSLF/160 | ?？怂咕д? | HC49SLF | 16MHz | ±50ppm |
| FOXSLF/080 | 福克斯晶振 | HC49SLF | 8MHz | ±50ppm |
| FOXSLF/128-20 | 福克斯晶振 | HC49SLF | 12.288MHz | ±50ppm |
| FOXSLF/245F-20 | 福克斯晶振 | HC49SLF | 24.576MHz | ±50ppm |
| FOXSLF/040A | ?？怂咕д? | HC49SLF | 4MHz | ±50ppm |
| FOXSLF/120 | 福克斯晶振 | HC49SLF | 12MHz | ±50ppm |
| FOXSLF/0368-20 | 福克斯晶振 | HC49SLF | 3.6864MHz | ±50ppm |
| FOXSLF/240F-20 | ?？怂咕д? | HC49SLF | 24MHz | ±50ppm |
| FOXLF250F-20 | ?？怂咕д? | HC49ULF | 25MHz | ±50ppm |
| FOXLF120-20 | 福克斯晶振 | HC49ULF | 12MHz | ±50ppm |
| FOXLF160 | 福克斯晶振 | HC49ULF | 16MHz | ±50ppm |
| FOXLF160-20 | 福克斯晶振 | HC49ULF | 16MHz | ±50ppm |
| FOXLF040A | ?？怂咕д? | HC49ULF | 4MHz | ±50ppm |
| FOXLF0368-20 | ?？怂咕д? | HC49ULF | 3.6864MHz | ±50ppm |
| FOXSLF/143-20 | FOX CRYSTAL | HC49SLF | 14.31818MHz | ±50ppm |
| FOXSDLF/143-20 | ?？怂咕д? | HC49SDLF | 14.31818MHz | ±50ppm |
| FOXSDLF/245F-20 | 福克斯晶振 | HC49SDLF | 24.576MHz | ±50ppm |
| FOXSDLF/041 | ?？怂咕д? | HC49SDLF | 4.194304MHz | ±50ppm |
| FOXSDLF/100-20 | ?？怂咕д? | HC49SDLF | 10MHz | ±50ppm |
| FOXSDLF/160R-20/TR | ?？怂咕д? | HC49SDLF | 16MHz | ±50ppm |
| FOXSDLF/200R-20/TR | 福克斯晶振 | HC49SDLF | 20MHz | ±50ppm |
| FOXSDLF/245FR-20/TR | ?？怂咕д? | HC49SDLF | 24.576MHz | ±50ppm |
| FQ5032B-24.576 | ?？怂咕д? | C5BQ | 24.576MHz | ±30ppm |
| FQ5032B-24.000 | ?？怂咕д? | C5BQ | 24MHz | ±30ppm |
| FQ5032B-16.000 | ?？怂咕д? | C5BQ | 16MHz | ±30ppm |
| FQ5032BR-25.000 | ?？怂咕д? | C5BQ | 25MHz | ±50ppm |
| FQ5032BR-12.000 | ?？怂咕д? | C5BQ | 12MHz | ±50ppm |
| FQ5032BR-20.000 | 福克斯晶振 | C5BQ | 20MHz | ±50ppm |
| FQ5032BR-24.000 | ?？怂咕д? | C5BQ | 24MHz | ±50ppm |
| FQ7050B-10.000 | 福克斯晶振 | C7BQ | 10MHz | ±30ppm |
| FQ7050BR-8.000 | ?？怂咕д? | C7BQ | 8MHz | ±50ppm |
| FQ7050BR-6.000 | ?？怂咕д? | C7BQ | 6MHz | ±50ppm |
| FQ3225B-16.000 | ?？怂咕д? | FQ3225B | 16MHz | ±50ppm |
| FQ3225B-27.000 | ?？怂咕д? | FQ3225B | 27MHz | ±50ppm |
