頻率：16MHZ
尺寸：2.5x2.0mm
6G放大器晶振 美國FOX晶振 FC2BAEBDI16.0-T1，尺寸為2.5x2.0mm，頻率16MHZ，進口福克斯晶振，福克斯小尺寸晶振，無源貼片晶振，石英SMD晶振，SMD晶振，貼片石英晶振，水晶振動子，石英晶振，石英晶體諧振器，四腳貼片晶振，智能家居晶振，6G放大器晶振，儀器設備晶振，無線網絡專用晶振，小型設備晶振，通信設備晶振，高品質晶振，低損耗晶振，高性能晶振，產品具有輕薄型高性能低損耗的特點。
貼片晶體產品主要應用于智能家居，6G放大器，儀器設備，無線網絡，小型設備，通信設備等領域.6G放大器晶振 美國FOX晶振 FC2BAEBDI16.0-T1.
6G放大器晶振 美國FOX晶振 FC2BAEBDI16.0-T1，尺寸為2.5x2.0mm，頻率16MHZ，進口福克斯晶振，福克斯小尺寸晶振，無源貼片晶振，石英SMD晶振，SMD晶振，貼片石英晶振，水晶振動子，石英晶振，石英晶體諧振器，四腳貼片晶振，智能家居晶振，6G放大器晶振，儀器設備晶振，無線網絡專用晶振，小型設備晶振，通信設備晶振，高品質晶振，低損耗晶振，高性能晶振，產品具有輕薄型高性能低損耗的特點。
貼片晶體產品主要應用于智能家居，6G放大器，儀器設備，無線網絡，小型設備，通信設備等領域.6G放大器晶振 美國FOX晶振 FC2BAEBDI16.0-T1.

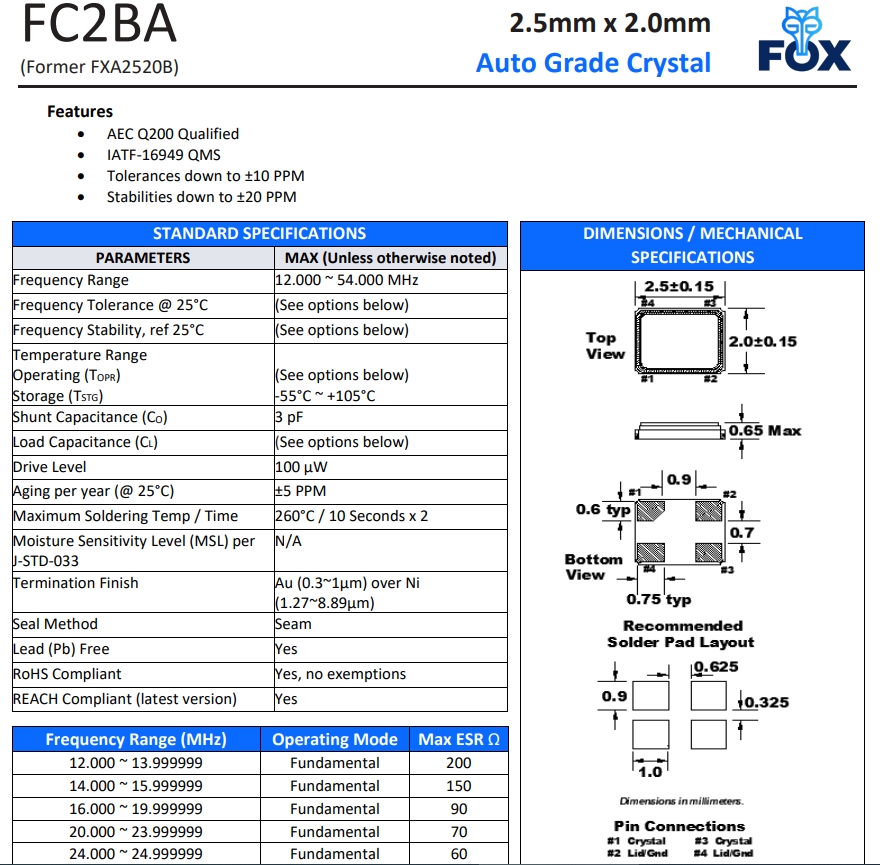

6G放大器晶振 美國FOX晶振 FC2BAEBDI16.0-T1 參數表
| STANDARD SPECIFICATIONS | |||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||||
| Frequency Range | 16.000MHz | ||||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||||
| Frequency Stability, ref 25°C | (See options below) | ||||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -55°C ~ +105°C |
||||||||||||||
| Shunt Capacitance (CO) | 3 pF | ||||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||||
| Drive Level | 100 µW | ||||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | ||||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | ||||||||||||||
| Termination Finish |
Au (0.3~1µm) over Ni (1.27~8.89µm) |
||||||||||||||
| Seal Method | Seam | ||||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||||
| RoHS Compliant | Yes, no exemptions | ||||||||||||||
| REACH Compliant (latest version) | Yes | ||||||||||||||

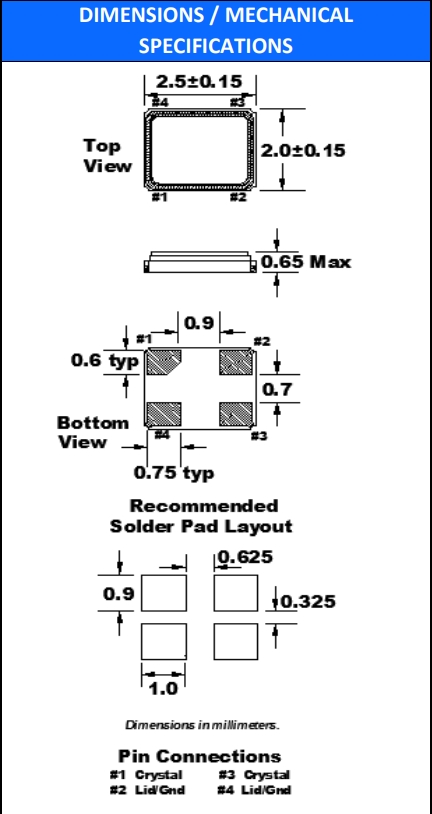

6G放大器晶振 美國FOX晶振 FC2BAEBDI16.0-T1 尺寸圖
石英晶體產品特性：
符合AEC Q200標準
IATF-16949質量管理系統
公差低至10PPM
穩定性低至20PPM
更多相關福克斯晶振型號
| Manufacturer Part Number原廠編碼 | 晶振廠家 | Series型號 | Frequency | Frequency Stability頻率穩定度 |
| FQ3225B-24.000 | 福克斯晶振 | FQ3225B | 24MHz | ±50ppm |
| FOXLF0368S | 福克斯晶振 | HC49ULF | 3.6864MHz | ±50ppm |
| FOXSDLF/184-20 | 福克斯晶振 | HC49SDLF | 18.432MHz | ±50ppm |
| FOXSDLF/060-20 | 福克斯晶振 | HC49SDLF | 6MHz | ±50ppm |
| FOXSDLF/040 | 福克斯晶振 | HC49SDLF | 4MHz | ±50ppm |
| FOXSDLF/221-20 | 福克斯晶振 | HC49SDLF | 22.1184MHz | ±50ppm |
| FOXSDLF/073-20 | 福克斯晶振 | HC49SDLF | 7.3728MHz | ±50ppm |
| FOXSDLF/049-20 | 福克斯晶振 | HC49SDLF | 4.9152MHz | ±50ppm |
| FOXSDLF/250FR-20/TR | 福克斯晶振 | HC49SDLF | 25MHz | ±50ppm |
| FX425B-12.000 | 福克斯晶振 | FX425B | 12MHz | ±50ppm |
| FQ5032B-18.432 | 福克斯晶振 | C5BQ | 18.432MHz | ±30ppm |
| FX252BS-24.000 | 福克斯晶振 | FX252B | 24MHz | ±50ppm |
| FQ7050BR-7.3728 | 福克斯晶振 | C7BQ | 7.3728MHz | ±50ppm |
| FX122-327 | 福克斯晶振 | FX122 | 32.768kHz | - |
| FOXSLF/115-20 | 福克斯晶振 | HC49SLF | 11.0592MHz | ±50ppm |
| FOXSLF/250F-20 | 福克斯晶振 | HC49SLF | 25MHz | ±50ppm |
| FOXSLF/147-20 | 福克斯晶振 | HC49SLF | 14.7456MHz | ±50ppm |
| FOXSLF/073-20 | 福克斯晶振 | HC49SLF | 7.3728MHz | ±50ppm |
| FOXSLF/160-20 | 福克斯晶振 | HC49SLF | 16MHz | ±50ppm |
| FOXSLF/160 | 福克斯晶振 | HC49SLF | 16MHz | ±50ppm |
| FOXSLF/080 | 福克斯晶振 | HC49SLF | 8MHz | ±50ppm |
| FOXSLF/128-20 | 福克斯晶振 | HC49SLF | 12.288MHz | ±50ppm |
| FOXSLF/245F-20 | 福克斯晶振 | HC49SLF | 24.576MHz | ±50ppm |
| FOXSLF/040A | 福克斯晶振 | HC49SLF | 4MHz | ±50ppm |
| FOXSLF/120 | 福克斯晶振 | HC49SLF | 12MHz | ±50ppm |
| FOXSLF/0368-20 | 福克斯晶振 | HC49SLF | 3.6864MHz | ±50ppm |
| FOXSLF/240F-20 | 福克斯晶振 | HC49SLF | 24MHz | ±50ppm |
| FOXLF250F-20 | 福克斯晶振 | HC49ULF | 25MHz | ±50ppm |
| FOXLF120-20 | 福克斯晶振 | HC49ULF | 12MHz | ±50ppm |
| FOXLF160 | 福克斯晶振 | HC49ULF | 16MHz | ±50ppm |
| FOXLF160-20 | 福克斯晶振 | HC49ULF | 16MHz | ±50ppm |
| FOXLF040A | 福克斯晶振 | HC49ULF | 4MHz | ±50ppm |
| FOXLF0368-20 | 福克斯晶振 | HC49ULF | 3.6864MHz | ±50ppm |
| FOXSLF/143-20 | 福克斯晶振 | HC49SLF | 14.31818MHz | ±50ppm |
| FOXSDLF/143-20 | 福克斯晶振 | HC49SDLF | 14.31818MHz | ±50ppm |
| FOXSDLF/245F-20 | 福克斯晶振 | HC49SDLF | 24.576MHz | ±50ppm |
| FOXSDLF/041 | 福克斯晶振 | HC49SDLF | 4.194304MHz | ±50ppm |
| FOXSDLF/100-20 | 福克斯晶振 | HC49SDLF | 10MHz | ±50ppm |
| FOXSDLF/160R-20/TR | 福克斯晶振 | HC49SDLF | 16MHz | ±50ppm |
| FOXSDLF/200R-20/TR | 福克斯晶振 | HC49SDLF | 20MHz | ±50ppm |
| FOXSDLF/245FR-20/TR | 福克斯晶振 | HC49SDLF | 24.576MHz | ±50ppm |
| FQ5032B-24.576 | 福克斯晶振 | C5BQ | 24.576MHz | ±30ppm |
| FQ5032B-24.000 | 福克斯晶振 | C5BQ | 24MHz | ±30ppm |
| FQ5032B-16.000 | 福克斯晶振 | C5BQ | 16MHz | ±30ppm |
| FQ5032BR-25.000 | 福克斯晶振 | C5BQ | 25MHz | ±50ppm |
| FQ5032BR-12.000 | 福克斯晶振 | C5BQ | 12MHz | ±50ppm |
| FQ5032BR-20.000 | 福克斯晶振 | C5BQ | 20MHz | ±50ppm |
| FQ5032BR-24.000 | 福克斯晶振 | C5BQ | 24MHz | ±50ppm |
| FQ7050B-10.000 | 福克斯晶振 | C7BQ | 10MHz | ±30ppm |
| FQ7050BR-8.000 | 福克斯晶振 | C7BQ | 8MHz | ±50ppm |
| FQ7050BR-6.000 | 福克斯晶振 | C7BQ | 6MHz | ±50ppm |
| FQ3225B-16.000 | 福克斯晶振 | FQ3225B | 16MHz | ±50ppm |
| FQ3225B-27.000 | 福克斯晶振 | FQ3225B | 27MHz | ±50ppm |
| FQ3225BR-25.000 | 福克斯晶振 | FQ3225B | 25MHz | ±50ppm |
| FQ3225BR-24.000 | 福克斯晶振 | FQ3225B | 24MHz | ±50ppm |
