TG2520SMN/26.000000MHz/X1G0054210204/2520/±1.5ppm/1.8V-3.3V

頻率：10~55MHz

尺寸：2.5x2.0mm

TG2520SMN/26.000000MHz/X1G0054210204/2520/±1.5ppm/1.8V-3.3V，愛普生晶振型號TG2520SMN，產品編碼：X1G0054210204，產品型號：TG2520SMN26.000000MHzTCGNNM溫補晶振，是一款小體積晶振尺寸2.5x2.0mm四腳貼片晶振，電源電壓：1.8V~3.3V，工作溫度：-40~+85℃，石英晶振，溫補晶體振蕩器，是高穩定性和低相位噪聲的TCXO振蕩器，使用Epson開發和制造的IC和MHz基晶體。相位噪聲是愛普生緊湊的TCXO產品系列中最低的，使其成為GNSS和其他無線通信設備的理想?yún)⒖紩r(shí)鐘。具有超小型，輕薄型，低抖動，低功耗，低耗能，低電源電壓，低損耗，低電平，低相位噪聲等特點，被應用于GNSS射頻無線通信設備LTE、WiMAX、Wi-Fi、W-LAN網聯網，無線網絡，藍牙模塊等。

訂購熱線：0755-29952551

LH-1

LH-2

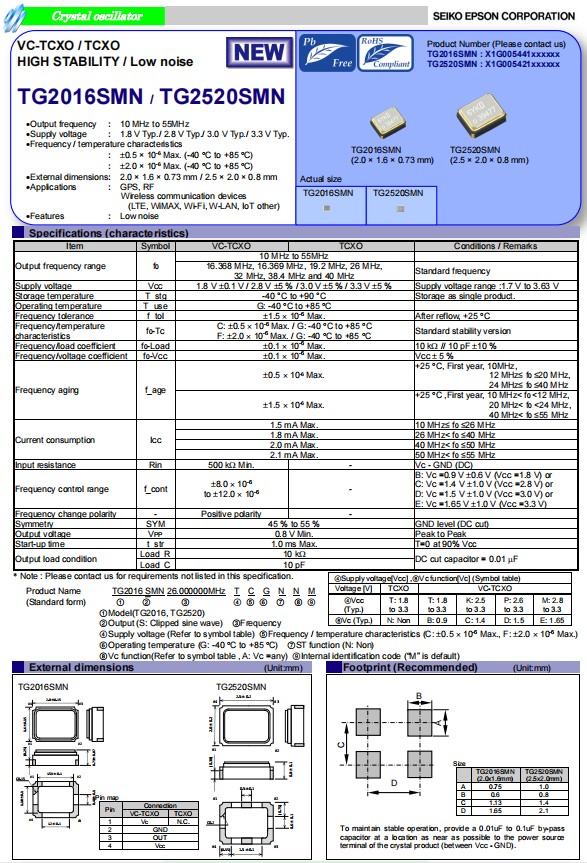

TG2520SMN/26.000000MHz/X1G0054210204/2520/±1.5ppm/1.8V-3.3V，參數圖

TG2016SMN/ TG2520SMN	Symbol	VC-TCXO	TCXO	Conditions / Remarks
輸出頻率范圍	f0	10 MHz to 55MHz
輸出頻率范圍	f0	16.368 MHz, 16.369 MHz, 19.2 MHz, 26 MHz, 32 MHz, 38.4 MHz and 40 MHz		Standard frequency
電源電壓	VCC	1.8 V ±0.1 V / 2.8 V ±5 % / 3.0 V ±5 % / 3.3 V ±5 %		Supply voltage range :1.7 V to 3.63 V
儲存溫度	T_stg	-40 °C to +90 °C		Storage as single product.
工作溫度	T_use	G: -40 °C to +85 °C
頻率容差	f_tol	±1.5 ´ 10-6 Max.		After reflow, +25 °C
“頻率/溫度特性”	f0-TC	C: ±0.5 ´ 10-6 Max. / G: -40 °C to +85 °C F: ±2.0 ´ 10-6 Max. / G: -40 °C to +85 °C		Standard stability version
頻率/負載系數	f0-Load	±0.1 ´ 10-6 Max.		10 kW // 10 pF ±10 %
頻率/電壓系數	f0-VCC	±0.1 ´ 10-6 Max.		VCC ± 5 %
頻率老化	f_age	±0.5 ´ 10-6 Max.		+25 °C, First year, 10MHz, 12 MHz≤ f0 ≤20 MHz, 24 MHz≤ f0 ≤40 MHz
頻率老化	f_age	±1.5 ´ 10-6 Max.		+25 °C ,First year, 10 MHz< f0 <12 MHz, 20 MHz< f0 <24 MHz, 40 MHz< f0 ≤55 MHz
電流消耗		1.5 mA Max.		10 MHz≤ f0 ≤26 MHz
	ICC	1.8 mA Max.		26 MHz< f0 ≤40 MHz
		2.0 mA Max.		40 MHz< f0 ≤50 MHz
		2.1 mA Max.		50 MHz< f0 ≤55 MHz
輸入電阻	Rin	500 kW Min.	-	VC - GND (DC)
頻率控制范圍	f_cont	±8.0 ´ 10-6 to ±12.0 ´ 10-6	-	B: VC =0.9 V ±0.6 V (VCC =1.8 V) or C: VC =1.4 V ±1.0 V (VCC =2.8 V) or D: VC =1.5 V ±1.0 V (VCC =3.0 V) or E: VC =1.65 V ±1.0 V (VCC =3.3 V)
頻率變化極性	-	Positive polarity	-
對稱性	SYM	45 % to 55 %		GND level (DC cut)
輸出電壓	VPP	0.8 V Min.		Peak to Peak
啟動時間	t_str	1.0 ms Max.		T=0 at 90% Vcc
輸出負載條件	Load_R	10 kW		DC cut capacitor = 0.01 mF
輸出負載條件	Load_C	10 pF		DC cut capacitor = 0.01 mF

LH-3

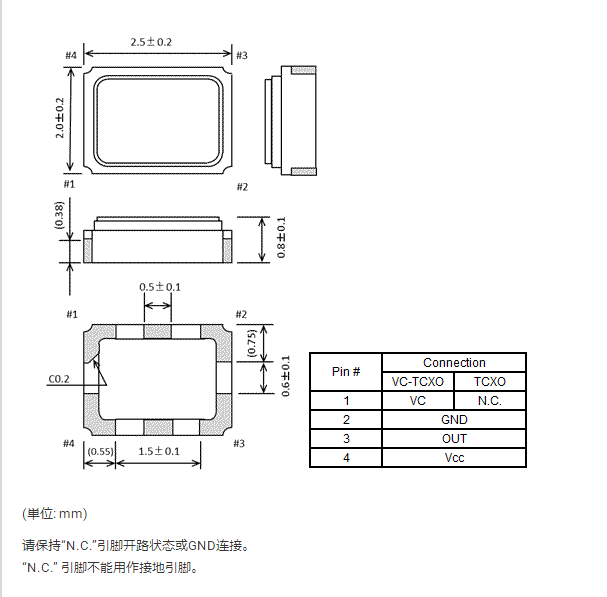

TG2520SMN/26.000000MHz/X1G0054210204/2520/±1.5ppm/1.8V-3.3V，尺寸圖

日本進口晶振	型號	頻率	尺寸	輸出	電壓
X1G0054210029	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	3.135 to 3.465 V
X1G0054210030	TG2520SMN	12.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	3.135 to 3.465 V
X1G0054210037	TG2520SMN	16.384000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210038	TG2520SMN	16.384000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.260 to 3.465 V
X1G0054210201	TG2520SMN	16.368000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210202	TG2520SMN	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210203	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210204	TG2520SMN	26.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210205	TG2520SMN	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210206	TG2520SMN	38.400000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210207	TG2520SMN	40.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210208	TG2520SMN	16.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210211	TG2520SMN	20.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210212	TG2520SMN	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210213	TG2520SMN	25.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210214	TG2520SMN	27.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210215	TG2520SMN	30.000000 MHz	2520晶振	Clipped sine wave	1.700 to 1.900 V
X1G0054210216	TG2520SMN	48.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210220	TG2520SMN	52.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210221	TG2520SMN	27.600000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210222	TG2520SMN	50.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210301	TG2520SMN	16.368000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210302	TG2520SMN	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210303	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210304	TG2520SMN	26.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210305	TG2520SMN	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210306	TG2520SMN	38.400000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210307	TG2520SMN	40.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210308	TG2520SMN	16.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210311	TG2520SMN	20.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210312	TG2520SMN	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210313	TG2520SMN	25.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210314	TG2520SMN	27.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210315	TG2520SMN	30.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210316	TG2520SMN	48.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210320	TG2520SMN	52.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210321	TG2520SMN	27.600000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210322	TG2520SMN	50.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210324	TG2520SMN	10.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.260 to 3.465 V
