當前位置：首頁 » 進口晶振 » Quartzcom晶振 » Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振

prevnext

Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振

頻率：8~240MHZ

尺寸：6.0x3.5mm

Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振,石英通無源晶體,瑞士進口晶振,石英晶體諧振器,無源貼片晶振,QuartzcomCrystal,SMD晶體,無源石英晶體,6035mm小體積晶振,四腳貼片晶振,尺寸6.0x3.5mm,頻率范圍8~240MHZ,高頻晶振,高性能晶振,高質量晶振,低損耗晶振,數字音頻晶振,電信設備晶振,導航定位晶振,汽車音響晶振.

訂購熱線：0755-29952551

LH-1

CTS-1

Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振特點:

寬頻率范圍：8至240MHz石英晶振

高沖擊和振動電阻率

回流焊@260°C LH-2

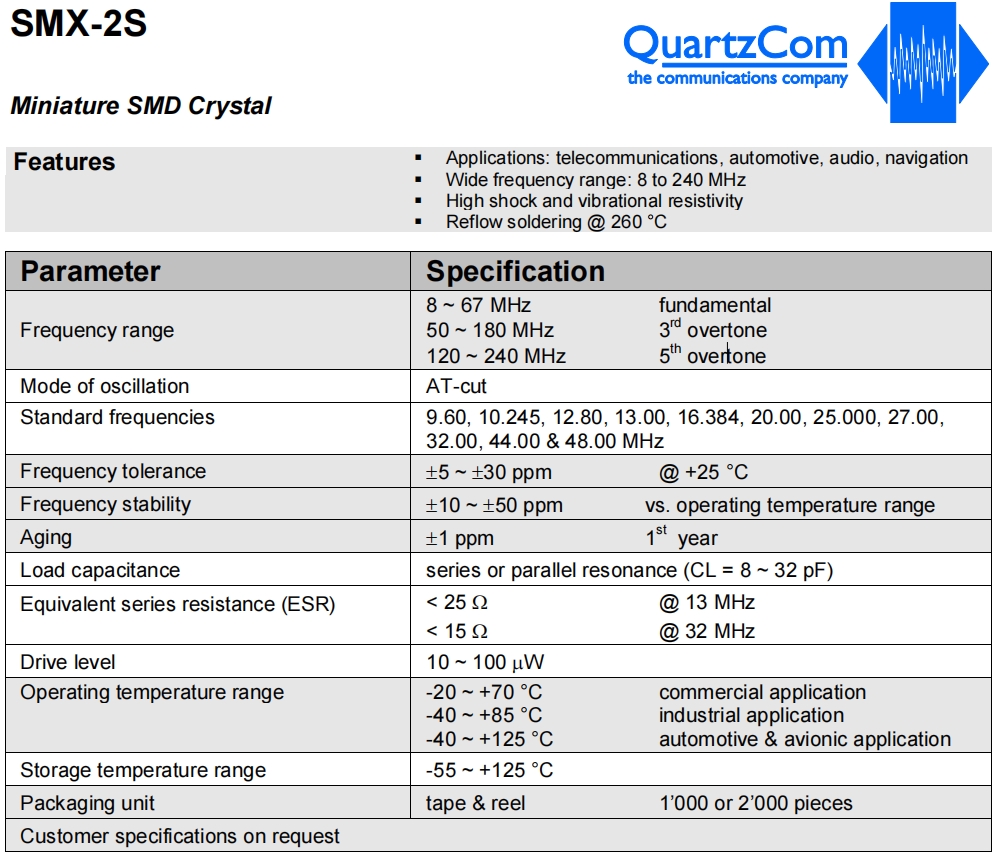

CTS-2 Quartzcom電信晶振,SMX-2S,52MHZ貼片晶體,6035mm晶振 參數表

Parameter	Specification
Frequency range	8 ~ 67 MHz 50 ~ 180 MHz 120 ~ 240 MHz	fundamental 3rd overtone 5th overtone
Mode of oscillation	AT-cut
Standard frequencies	9.60, 10.245, 12.80, 13.00, 16.384, 20.00, 25.000, 27.00, 32.00, 44.00 & 48.00 MHz
Frequency tolerance	土5 ~ 土30 ppm @ +25 °C
Frequency stability	土10 ~ 土50 ppm vs. operating temperature range
Aging	土1 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 25 Ω < 15 Ω	@ 13 MHz @ 32 MHz
Drive level	10 ~ 100 μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel 1’000 or 2’000 pieces
Customer specifications on request
