3225mm,V33302550T-40.000-X-R3,40MHz,Aker輕薄型晶振

頻率：40MHz

尺寸：3.2x2.5mm

3225mm,V33302550T-40.000-X-R3,40MHz,Aker輕薄型晶振，臺灣Aker晶振，安碁晶振，型號：V3系列晶振，編碼為：V33302550T-40.000-X-R3，電壓：3.3V，±25ppm的溫度穩定性，±50ppm最小脈沖頻率范圍，頻率：40MHz，擴展溫度范圍：-40~+85°C，小體積晶振尺寸：3.2x2.5mm表面貼裝，四腳貼片晶振，石英晶振，有源晶振，VCXO壓控晶振，壓控晶體振蕩器，石英晶體振蕩器，3225晶振，SMD晶振。具有超小型晶振，輕薄型晶振，低抖動晶振，低功耗晶振，低電源電壓晶振，低相位噪聲晶振，低損耗晶振，低耗能等特點。振蕩器，應用于：微處理器晶振，通訊設備晶振，無線網絡晶振，藍牙模塊晶振，物聯網晶振，智能家居等應用。

訂購熱線：0755-29952551

LH-1

CTS-1

LH-2

CTS-2

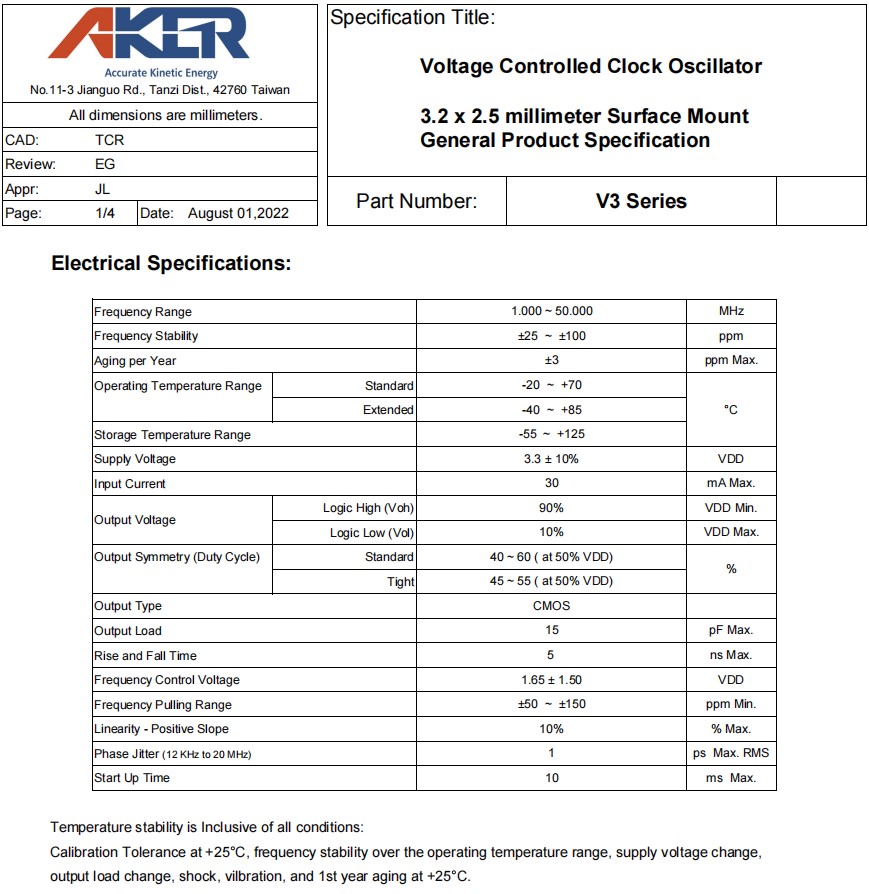

3225mm,V33302550T-40.000-X-R3,40MHz,Aker輕薄型晶振,參數表

Frequency Range

MHz

Frequency Stability

±25 ~ ±100

ppm

Aging per Year

±3

ppm Max.

Operating Temperature Range

Standard

-20 ~ +70

°C

Extended

-40 ~ +85

Storage Temperature Range

-55 ~ +125

Supply Voltage

3.3 ± 10%

VDD

Input Current

mA Max.

Output Voltage

Logic High (Voh)

90%

VDD Min.

Logic Low (Vol)

10%

VDD Max.

Output Symmetry (Duty Cycle)

Standard

40 ~ 60 ( at 50% VDD)

Tight

45 ~ 55 ( at 50% VDD)

Output Type

CMOS

Output Load

pF Max.

Rise and Fall Time

ns Max.

Frequency Control Voltage

1.65 ± 1.50

VDD

Frequency Pulling Range

±50 ~ ±150

ppm Min.

Linearity - Positive Slope

10%

% Max.

Phase Jitter (12 KHz to 20 MHz)

ps Max. RMS

Start Up Time

ms Max.

LH-3

ECS-1

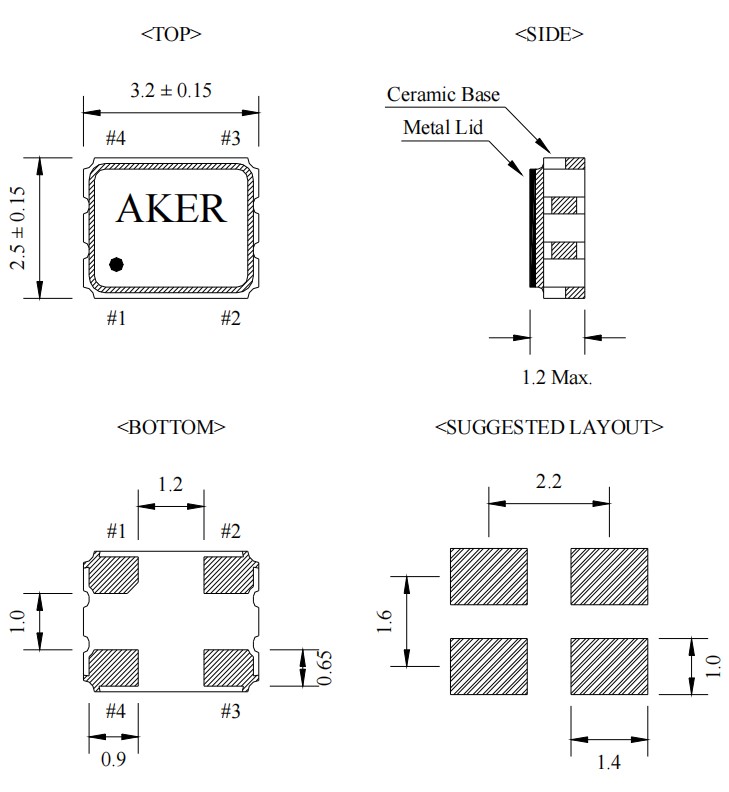

3225mm,V33302550T-40.000-X-R3,40MHz,Aker輕薄型晶振,尺寸圖

產品編碼	品牌	描述	系列	頻率
S2M025T-24.000-X-R	Aker安碁	XTAL OSC XO 24.0000MHZ HCMOS SMD	S2	24 MHz
S73305-20.000-X-15-R	Aker安碁	XTAL OSC XO 20.0000MHZ HCMOS SMD	S7	20 MHz
S73305T-25.000-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S7	25 MHz
S73305T-25.000-X-15-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S7	25 MHz
S733025T-25.000-15-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S7	25 MHz
S73305T-32.000-R	Aker安碁	XTAL OSC XO 32.0000MHZ HCMOS SMD	S7	32 MHz
S73305T-11.2896-X-30-R	Aker安碁	XTAL OSC XO 11.2896MHZ HCMOS SMD	S7	11.2896 MHz
S73305T-50.000-X-R	Aker安碁	XTAL OSC XO 50.0000MHZ HCMOS SMD	S7	50 MHz
S533025T-25.000-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S5	25 MHz
S73310-60.000-X-15-R	有源晶振	XTAL OSC XO 60.0000MHZ HCMOS SMD	S7	60 MHz
S3M025T-8.000-R	Aker安碁	XTAL OSC XO 8.0000MHZ HCMOS SMD	S3	8 MHz
S3M05T-8.000-R	Aker安碁	XTAL OSC XO 8.0000MHZ HCMOS SMD	S3	8 MHz
S333025T-25.000-X-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S3	25 MHz
S533025T-25.000-X-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S5	25 MHz
S325025T-25.000-X-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S3	25 MHz
S218025T-24.000-R	Aker安碁	XTAL OSC XO 24.0000MHZ HCMOS SMD	S2	24 MHz
S2M05T-24.000-R	Aker安碁	XTAL OSC XO 24.0000MHZ HCMOS SMD	S2	24 MHz
S23305T-50.000-R	Aker安碁	XTAL OSC XO 50.0000MHZ HCMOS SMD	S2	50 MHz
S233025T-25.000-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S2	25 MHz
S23305T-26.000-R	Aker安碁	XTAL OSC XO 26.0000MHZ HCMOS SMD	S2	26 MHz
S23305T-50.000-X-R	Aker安碁	XTAL OSC XO 50.0000MHZ HCMOS SMD	S2	50 MHz
S2M025T-25.000-X-R	Aker安碁	XTAL OSC XO 25.0000MHZ HCMOS SMD	S2	25 MHz
S73305T-125.000-R	Aker安碁	XTAL OSC XO 125.0000MHZ HCMOS	S7	125 MHz
S53305T-125.000-X-R	Aker安碁	XTAL OSC XO 125.0000MHZ HCMOS	S5	125 MHz
S11805T-25.000-X1-R	Aker安碁	XTAL OSC XO 25.0000MHZ CMOS SMD	S1 X1	25 MHz
