頻率：32.768KHz
尺寸：8.0x3.8x2.5mm
MMC-463F-32.768kHz-T,8038mm,MMC,Mmdcomp陶瓷晶振，美國進口晶振，Mmdcomp麥迪康晶振，型號：MMC系列，編碼為：MMC-463F-32.768kHz-T，頻率為：32.768KHz，負載：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：8.0x3.8x2.5mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，石英晶體諧振器，石英晶體，SMD晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。應用于：移動通訊晶振，鐘表電子晶振，儀器儀表設備晶振，無線藍牙晶振，平板電腦晶振，智能家居晶振，數碼電子等應用。
MMC-463F-32.768kHz-T,8038mm,MMC,Mmdcomp陶瓷晶振,產品特點:
頻率：32.768KHz，陶瓷SMD晶振
小型緊湊型，貼片晶振
可提供符合RoHS的產品

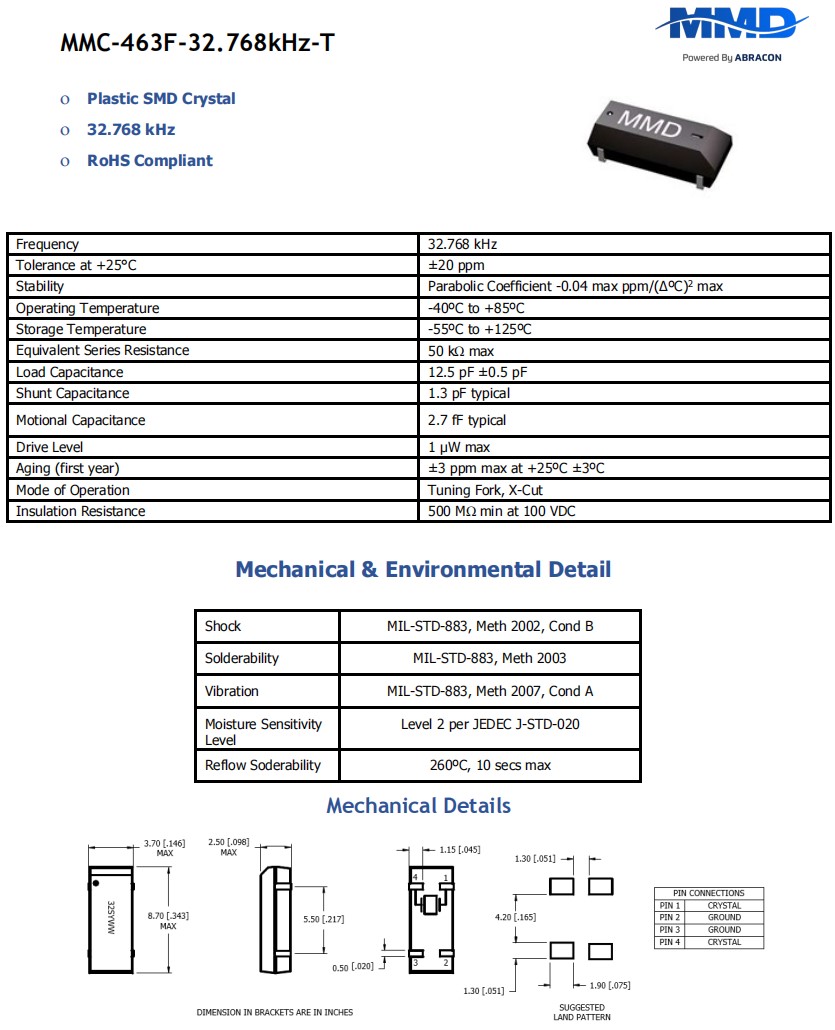

MMC-463F-32.768kHz-T,8038mm,MMC,Mmdcomp陶瓷晶振,參數表
Frequency
32.768 kHz
Tolerance at +25°C
±20 ppm
Stability
Parabolic Coefficient -0.04 max ppm/(△ºC)2 max
Operating Temperature
-40ºC to +85ºC
Storage Temperature
-55ºC to +125ºC
Equivalent Series Resistance
50 kΩ max
Load Capacitance
12.5 pF ±0.5 pF
Shunt Capacitance
1.3 pF typical
Motional Capacitance
2.7 fF typical
Drive Level
1 µW max
Aging (first year)
±3 ppm max at +25ºC ±3ºC
Mode of Operation
Tuning Fork, X-Cut
Insulation Resistance
500 MΩ min at 100 VDC

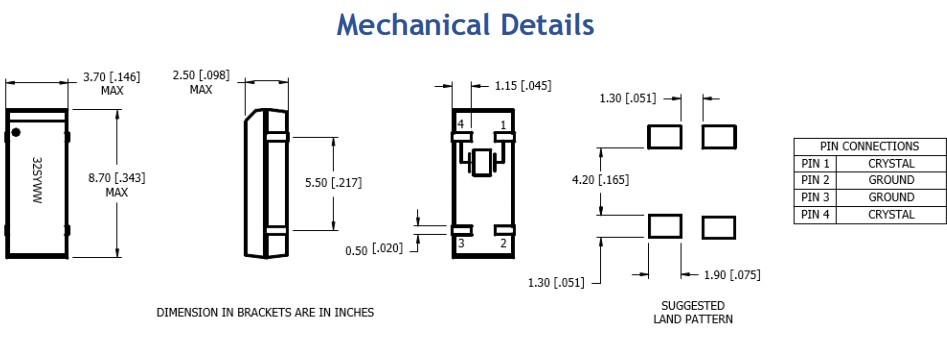

MMC-463F-32.768kHz-T,8038mm,MMC,Mmdcomp陶瓷晶振,尺寸圖
| 石英晶體 | 品牌 | 描述 | 頻率 | 系列 | 負載電容 |
| WC146SMF-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC146SM | 12.5pF |
| MMC-463F-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | MMC | 12.5pF |
| WC315-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC315 | 12.5pF |
| DF18CC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz | D | 18pF |
| DF18CC1-10.240MHZ-T | Mmdcomp晶振 | CRYSTAL 10.2400MHZ 18PF SMD | 10.24 MHz | D | 18pF |
| DF18CC1-13.000MHZ-T | Mmdcomp晶振 | CRYSTAL 13.0000MHZ 18PF SMD | 13 MHz | D | 18pF |
| T10GC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | T | 10pF |
| X10CB1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | X | 10pF |
| X10CB1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | X | 10pF |
| X10CB1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | X | 10pF |
| DF18CC1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz | D | 18pF |
| DF18CC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz | D | 18pF |
| DF18CC1-18.000MHZ-T | Mmdcomp晶振 | CRYSTAL 18.0000MHZ 18PF SMD | 18 MHz | D | 18pF |
| DF18CC1-12.000MHZ-T | Mmdcomp晶振 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz | D | 18pF |
| DF18CC1-13.500MHZ-T | Mmdcomp晶振 | CRYSTAL 13.5000MHZ 18PF SMD | 13.5 MHz | D | 18pF |
| DF18CC1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz | D | 18pF |
| DF18CC1-12.288MHZ-T | Mmdcomp晶振 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz | D | 18pF |
| T10GC1-24.000MHZ-T | 麥迪康晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | T | 10pF |
| T10GC1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | T | 10pF |
| T10GC1-24.576MHZ-T | Mmdcomp晶振 | CRYSTAL 24.5760MHZ 10PF SMD | 24.576 MHz | T | 10pF |
| T10GC1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | T | 10pF |
| T10GC1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | T | 10pF |
| X10CB1-16.000MHZ-T | Mmdcomp晶振 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz | X | 10pF |
| X10CB1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | X | 10pF |
| X10CB1-24.000MHZ-T | Mmdcomp晶振 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz | X | 10pF |
| WC26SMFD-32.768KHZ-T | Mmdcomp晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz | WC26SM | 12.5pF |
| WC38F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | 32.768 kHz | WC | 12.5pF |
| WC26F-32.768KHZ | Mmdcomp晶振 | 2 PIN THROUGH HOLE METAL PACKAGE | 32.768 kHz | WC | 12.5pF |
| X10CB1-48.000MHZ-T | Mmdcomp晶振 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz | X | 10pF |
| X10CB1-20.000MHZ-T | Mmdcomp晶振 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz | X | 10pF |
| DF18CC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz | D | 18pF |
| X10CB1-19.200MHZ-T | Mmdcomp晶振 | CRYSTAL 19.2000MHZ 10PF SMD | 19.2 MHz | X | 10pF |
| T10GC1-16.3676MHZ-T | Mmdcomp晶振 | CRYSTAL 16.3676MHZ 10PF SMD | 16.3676 MHz | T | 10pF |
| T10GC1-25.000MHZ-T | Mmdcomp晶振 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz | T | 10pF |
| T10GC1-40.000MHZ-T | Mmdcomp晶振 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz | T | 10pF |
