LH-1

日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振，尺寸為3.2*2.5mm，頻率100MHZ，輸出邏輯LVPECL，LVPECL差分輸出晶振，差分貼片晶振，日本電波差分晶振，六腳貼片差分晶振，低電壓差分振蕩器，低抖動差分晶振，低耗能差分晶振，低相噪差分晶振，汽車應用差分晶振，6G基站差分晶振，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡設備專用差分晶振，小尺寸差分晶振，OSC差分晶振，有源差分晶振.

OSC晶振產品主要適用于6G兼容設備、基站、光網絡單元、SDH/SONET設備，低端路由器、以太網、光收發器，汽車音響等領域。日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振.

LH-2

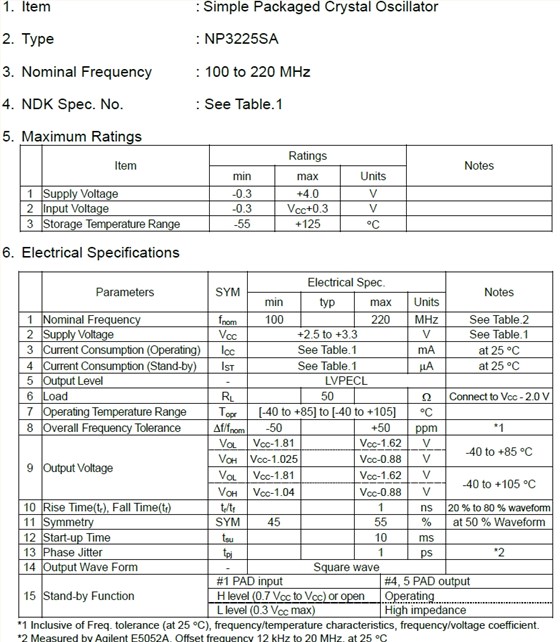

日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振參數表

Item

Ratings

Notes

min

max

Units

Supply Voltage

-0.3

+4.0

Input Voltage

-0.3

VCC+0.3

Storage Temperature Range

-55

+125

。C

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

Nominal Frequency

fnom

100

MHz

See Table.2

Supply Voltage

VCC

+2.5 to +3.3

See Table.1

Current Consumption (Operating)

ICC

See Table.1

at 25。C

Current Consumption (Stand-by)

IST

See Table.1

μA

at 25。C

Output Level

LVPECL

Load

Connect to VCC- 2.0 V

Operating Temperature Range

Topr

[-40 to +85] to [-40 to +105]

。C

Overall Frequency Tolerance

Δf/fnom

-50

+50

ppm

Output Voltage

VOL

VCC- 1.81

VCC- 1.62

-40 to +85。C

VOH

VCC- 1.025

VCC-0.88

VOL

VCC- 1.81

VCC- 1.62

-40 to +105。C

VOH

VCC- 1.04

VCC-0.88

Rise Time(tr), Fall Time(tf)

tr/tf

20 % to 80 % waveform

Symmetry

SYM

at 50 % Waveform

Start-up Time

tsu

Phase Jitter

tpj

Output Wave Form

Square wave

Stand-by Function

#1 PAD input

#4, 5 PAD output

H level (0.7 VCCto VCC) or open

Operating

L level (0.3 VCCmax)

High impedance

LH-3

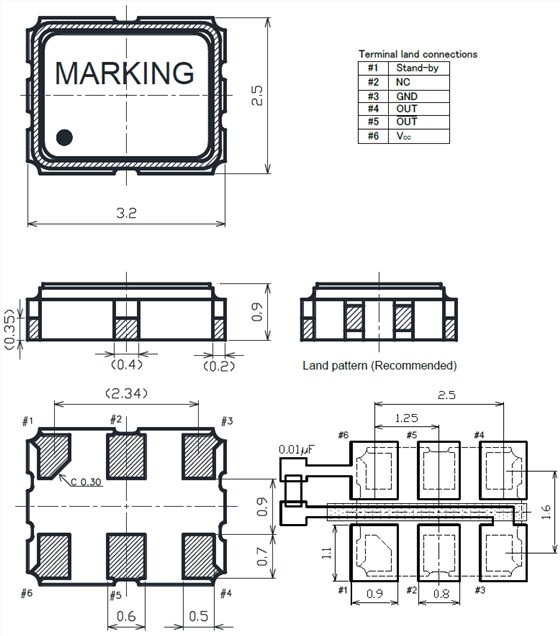

日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振 尺寸圖

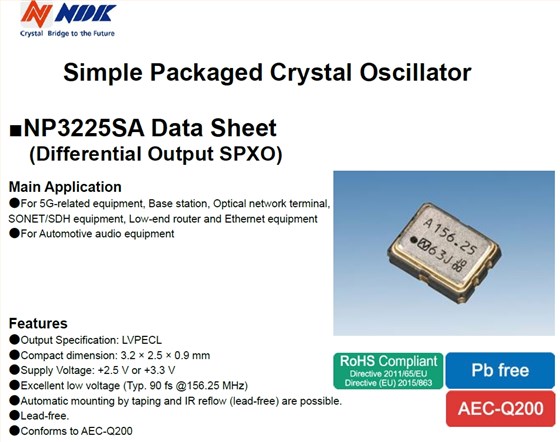

產品特性：

LVPECL差分輸出SPXO有源晶振

緊湊型:3.2 x 2.5 x 0.9毫米

電源電壓:+2.5V或者+3.3V

低相位抖動:典型。156.25 MHz時90fs

通過纏繞自動安裝和IR回流(無鉛)是可能的

符合AEC-Q100/200

更多相關日本電波NDK晶振型號

進口晶振	Nominal frequency[MHz]	Specification number	Manufacturer	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]	Storage temperature range[℃]	Supply voltage[V]
NP3225SA	122.88MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	125MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	156.25MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	175MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	100MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	122.88MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	125MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	156.25MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	175MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	100MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	122.88MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	125MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	156.25MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	175MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	100MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	122.88MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	125MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	156.25MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	175MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	200MHZ	NSC5235A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	212.5MHZ	NSC5235A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	200MHZ	NSC5235B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	212.5MHZ	NSC5235B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	200MHZ	NSC5237A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	212.5MHZ	NSC5237A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	200MHZ	NSC5237B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	212.5MHZ	NSC5237B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SB	50MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	100MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	125MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	135MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	148MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	156.25MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	200MHZ	NSC5236A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	50MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	100MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	125MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	135MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	148MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	156.25MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	200MHZ	NSC5236B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	50MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	100MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	125MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	135MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	148MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	156.25MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	200MHZ	NSC5238A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	50MHZ	NSC5344B	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+3.3±0.33
NP3225SB	100MHZ	NSC5344B	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+3.3±0.33
NP3225SB	125MHZ	NSC5344B	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+3.3±0.33
NP3225SB	135MHZ	NSC5344B	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+3.3±0.33
NP3225SB	148MHZ	NSC5344B	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+3.3±0.33
NP3225SB	156.25MHZ	NSC5344B	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+3.3±0.33
NP3225SB	200MHZ	NSC5238B	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+3.3±0.33
NP3225SC	100MHZ	NSC5082A	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+2.5±0.125
NP3225SC	156.25MHZ	NSC5082A	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+2.5±0.125
NP3225SC	100MHZ	NSC5345B	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+3.3±0.33
NP3225SC	156.25MHZ	NSC5345B	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+3.3±0.33
