LH-1

NDK藍牙耳機晶振,NX3225GA-12.288MHz-STD-CRG-2,NX3225GA無源晶體，尺寸3.2x2.5mm，頻率12.288MHZ，水晶振動子，無源晶振，陶瓷晶振，3225mm貼片晶振，四腳貼片晶振，無源貼片晶振，SMD晶振，陶瓷諧振器，輕薄型晶體，無源晶體，高品質晶振，高性能晶振，低功耗晶振，低損耗晶振，低耗能晶振，藍牙耳機晶振，辦公自動化專用晶振，視聽設備晶振，無線設備晶振，便攜式設備晶振，投影儀晶振，具有高品質低損耗的特點。

貼片晶體產品比較適合用于卓越的OA(辦公自動化)電氣性能和AV(視聽)相關設備應用，無線設備，便攜式設備，投影儀等領域。NDK藍牙耳機晶振,NX3225GA-12.288MHz-STD-CRG-2,NX3225GA無源晶體.

LH-2

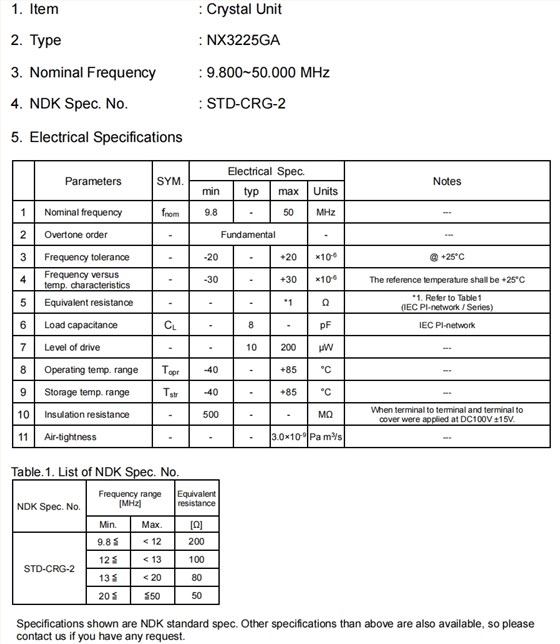

NDK藍牙耳機晶振,NX3225GA-12.288MHz-STD-CRG-2,NX3225GA無源晶體參數表

Parameters	SYM.	ElectricalSpec.				Notes
		min	typ	max	Units
Nominal frequency	fnom		12.288		MHz	---
Overtone order	-	Fundamental			-	---
Frequency tolerance	-	-20	-	+20	×10-6	@ +25°C
Frequency versus temp. characteristics	-	-30	-	+30	×10-6	The reference temperature shall be +25°C
Equivalent resistance	-	-	-	*1	Ω	*1. Refer to Table1 (IEC PI-network / Series)
Load capacitance	CL	-	8	-	pF	IEC PI-network
Level of drive	-	-	10	200	µW	---
Operating temp. range	Topr	-40	-	+85	°C	---
Storage temp. range	Tstr	-40	-	+85	°C	---
Insulation resistance	-	500	-	-	M Ω	When terminal to terminal and terminal to cover were applied at DC100V ±15V.
Air-tightness	-	-	-	3.0×10-9	Pa m3/s	---

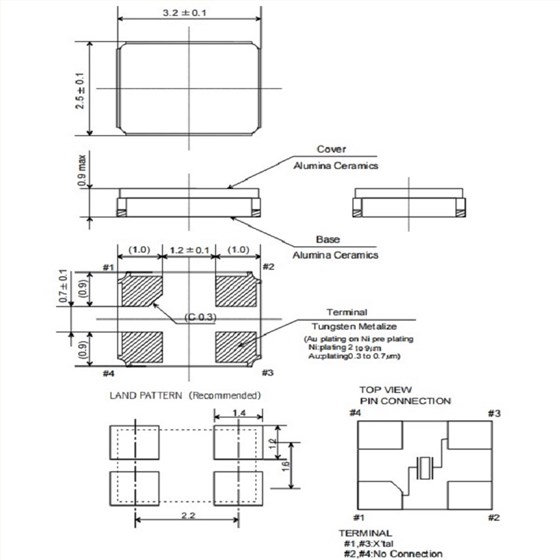

NDK藍牙耳機晶振,NX3225GA-12.288MHz-STD-CRG-2,NX3225GA無源晶體 尺寸圖

NDK藍牙耳機晶振,NX3225GA-12.288MHz-STD-CRG-2,NX3225GA無源晶體

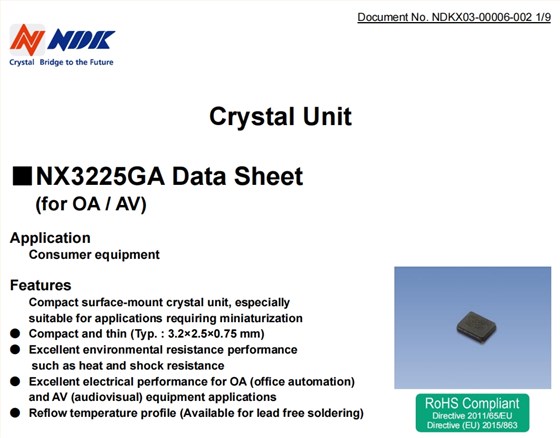

諧振器產品特點:

緊湊型表面貼裝型晶體單元，特別適合要求小型化的應用

緊湊型和薄(典型。:3.2×2.5×0.75毫米)

優異的耐熱等耐環境性能和耐震強度

卓越的OA(辦公自動化)電氣性能和AV(視聽)相關設備應用

回流溫度曲線(適用于無鉛焊接)

Model	Nominal frequency[MHz]	Specification number	Package size(LxW)[mm]	Operating temperature rang[℃]	Storage temperature range[℃]	Frequency tolerance[ppm]
NX3225SA	24	STD-CQS-1	3.2×2.5	-40~+125	-40~+125	±15
NX3225SA	25	STD-CQS-1	3.2×2.5	-40~+125	-40~+125	±15
NX3225SA	40	STD-CQS-1	3.2×2.5	-40~+125	-40~+125	±15
NX3225SA	48	STD-CQS-1	3.2×2.5	-40~+125	-40~+125	±15
NX3225SA	48	STD-CQS-1	3.2×2.5	-40~+125	-40~+125	±15
NX3225GA	9.844	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	10	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	10.245	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	10.666	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	11.059	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	11.29	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	11.666	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	11.853	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	12	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	12.166	STD-CRG-2	3.2×2.5SMD無源晶體	-40~+85	-40~+85	±20
NX3225GA	12.288	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	12.5	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	12.58	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	12.8	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.08	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.081	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.107	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.226	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.226	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.253	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.29	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.333	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.333	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.333	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.333	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.5	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.521	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.529	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.559	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	13.56	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	14.318	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	14.318	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	14.4	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	14.745	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	14.746	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	15.36	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	15.97	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	15.974	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	15.974	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	16	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	16.384	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	16.667	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	16.667	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	16.67	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	16.757	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	16.92	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	16.934	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	18	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	18.08	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	18.37	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	18.37	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	18.432	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	19.2	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	19.661	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	20	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	21.949	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	22.481	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	22.579	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	22.579	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	24	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	24.305	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	24.54	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	24.545	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	24.545	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	24.545	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	24.545	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	24.576	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	25	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	25.4	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	25.805	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	26	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
NX3225GA	26.998	STD-CRG-2	3.2×2.5	-40~+85	-40~+85	±20
