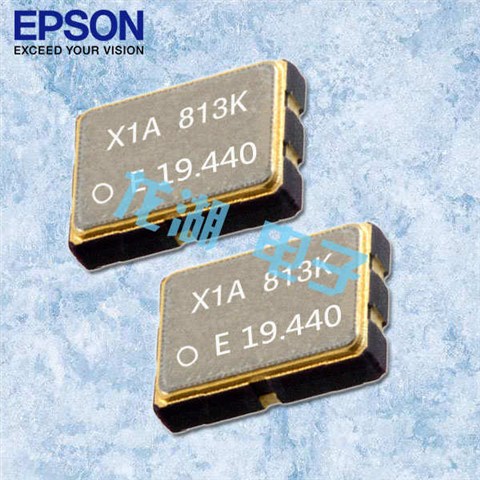

愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振

愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振

產品簡介

愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振，尺寸為3.2*2.5mm，頻率為100MHZ，輸出邏輯LVDS，LVDS輸出晶振，貼片差分晶振，低相噪差分晶振，低抖動差分晶振，100MHZ差分晶振，有源差分晶振，5G將使通信流量呈指數級增長。5G通信網絡要求高速寬頻帶，同時把噪音降到最低。這可以通過高頻率實現用于通信設備的低抖動參考時鐘。使用上面的XO，客戶可以輸入一個高頻率參考(高達500mhz)與極低的相位抖動和功率，從一個基本模式晶體實現極好的相位噪聲。

OSC晶振產品常常用于網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器，如ADC和DAC，以及通信產品等領域。愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振.


產品詳情

Abracon-2

LH-1

愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振，尺寸為3.2*2.5mm，頻率為100MHZ，輸出邏輯LVDS，LVDS輸出晶振，貼片差分晶振，低相噪差分晶振，低抖動差分晶振，100MHZ差分晶振，有源差分晶振，5G將使通信流量呈指數級增長。5G通信網絡要求高速寬頻帶，同時把噪音降到最低。這可以通過高頻率實現用于通信設備的低抖動參考時鐘。使用上面的XO，客戶可以輸入一個高頻率參考(高達500mhz)與極低的相位抖動和功率，從一個基本模式晶體實現極好的相位噪聲。

OSC晶振產品常常用于網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器，如ADC和DAC，以及通信產品等領域。愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振.

LH-2

愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振 參數表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.5 - 4 V fo≤200 MHz
-0.5 - 5 V fo > 200 MHz
Input voltage Vin -0.5 - VCC+ 0.5 V OE terminal
Storage temperature range T_stg -55 - 125 ºC
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 2.375 2.5 2.625 V Suffix: D
3.135 3.3 3.465 V Suffix: C
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 ºC Suffix: G
-40 +25 +105 ºC Suffix: H
LVDS load condition L_LVDS 100 Ω Connected between
OUT and
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo
- 100 MHz SG3225VEN / SG7050VEN

-
MHz SG5032VEN
Frequency tolerance f_tol -25 - +25 ×10-6 *2
Suffix: D
fo≤200 MHz, T_use: G
-50 - +50 ×10-6 *3
Suffix: J
T_use: G
*3
Suffix: J
fo≤200 MHz, T_use: H
-100 - +100 ×10-6 *3
Suffix: L
T_use: H
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 %VCC
Current consumption ICC - - 25 mA
Disable current I_dis - - 15 mA OE = GND
Rise time / Fall time tr / tf - - 0.3 ns 20 % - 80 % of differential
output peak to peak voltage
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOD 250 350 450 mV DC characteristics
dVOD - - 50 mV
VOS 1.15 1.25 1.35 V
dVOS - - 50 mV
Input voltage VIH 70 % VCC - - V OE terminal
VIL - - 30 % VCC V
Output disable time tstp_oe - - 100 ns OE terminal HIGH → LOW
Output enable time tsta_oe - - 200 ns fo ≤ 200 MHz,
OE terminal LOW → HIGH
- - 500 ns fo > 200 MHz,
OE terminal LOW → HIGH
Phase jitter(fo = 25 MHz) tPJ - 164.8 - fs Offset frequency
12 kHz to 5 MHz
Phase jitter(fo = 50 MHz) tPJ - 183.1 - fs Offset frequency
12 kHz to 20 MHz
Phase jitter(fo = 100 MHz) tPJ - 96.1 150 fs
Phase jitter(fo = 125 MHz) tPJ - 71.1 110 fs
Phase jitter(fo = 156.25 MHz) tPJ - 59.6 90 fs
Phase jitter(fo = 212.5 MHz) tPJ - 36.2 80 fs
Phase jitter(fo = 312.5 MHz) tPJ - 37.0 80 fs
Phase jitter(fo = 491.52 MHz) tPJ - 29.2 60 fs
LH-3Abracon-1

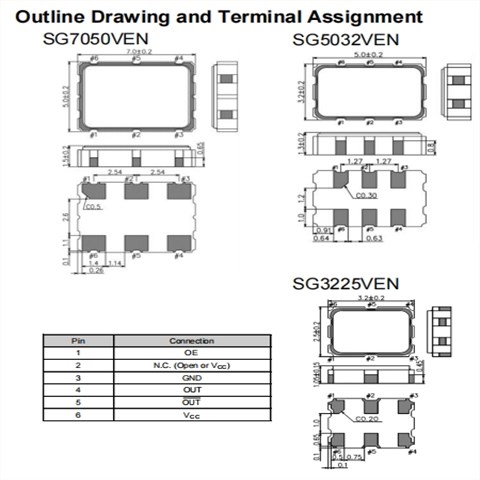

愛普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振 尺寸圖SG3225VEN SG5032VEN SG7050VEN 1

產品特性：

有源晶體振蕩器(SPXO)

頻率范圍(fo): 25MHz至500MHz

輸出:LVDS

供電電壓:2.5 V。/ 3.3 V類型

工作溫度:-40℃至+105℃

低相位抖動:60fs(fo = 156.25 MHz)

SG3225VEN SG5032VEN SG7050VEN 1

更多相關日本愛普生晶振型號

編碼 品牌 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1G0042410001 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410002 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410004 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410005 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410006 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410007 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410008 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410009 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410010 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410011 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410012 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410014 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410015 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410016 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410017 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410020 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410021 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410023 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410024 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410025 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410026 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410027 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410028 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410029 愛普生晶振
 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410030 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410031 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410033 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410034 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410035 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410036 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410039 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410040 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410042 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410043 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410044 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410045 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410046 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410047 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410048 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410049 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410050 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410052 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410053 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410054 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410055 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410058 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410059 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410061 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410062 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410063 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410064 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410065 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410066 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410067 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410068 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410069 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410071 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410072 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410073 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
