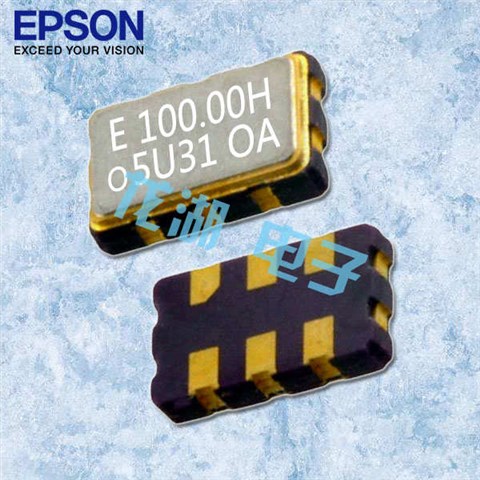

愛普生低抖動振蕩器,X1M0004610002,XG5032HAN有源晶振,6G模塊差分晶振，尺寸為5.00x3.20x1.40mm，頻率100MHZ，輸出邏輯HCSL，HCSL輸出差分晶振，差分貼片晶振，愛普生差分晶振，進口差分晶振，低抖動差分晶振，低耗能差分振蕩器，低電壓差分晶振，低相位差分晶振，100MHZ差分晶振，高性能差分晶振，高品質差分晶振，6G藍牙模塊差分晶振，儀器設備差分晶振。

差分晶振一般是LVDS、LVPECL，HCSL等信號，需要兩根線輸出。優點是抗干擾能力強，缺點是布線需注意。
1）電平幅度大，信號高低電平之間的轉換時間長，不適用于傳輸頻率達到100MHZ以上的信號
2）輸出信號為單端信號（一條線），傳輸路徑受到干擾，不利于長線傳輸
3）功耗大，大家都知道TTL器件的靜態功耗較大，即使靜態功耗小的CMOS器件，由于電平擺幅寬，其動態功耗也偏大。愛普生低抖動振蕩器,X1M0004610002,XG5032HAN有源晶振,6G模塊差分晶振. LH-2

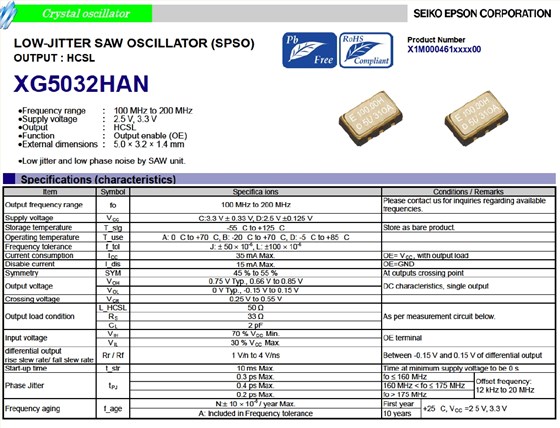

愛普生低抖動振蕩器,X1M0004610002,XG5032HAN有源晶振,6G模塊差分晶振參數表

Item	Symbol	Specifications	Conditions / Remarks
Output frequency range	f0	100MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	C : 3.3V ± 0.33V D : 2.5V ± 0.125V
Storage temperature	T_stg	-55°C to +125°C	Store as bare product.
Operating temperature*1	T_use	A : 0°C to +70°C B : -20°C to +70°C D : -5°C to +85°C
Frequency tolerance*1	f_tol	J : ± 50 × 10-6 L : ±100 × 10-6
Current consumption	ICC	35mA Max.	OE = VCC, with output load
Disable current	I_dis	15mA Max.	OE = GND
Symmetry	SYM	45% to 55%	at outputs crossing point
Output voltage	VOH	0.75 V Typ. , 0.66V to 0.85V	DC characteristics,Single output
Output voltage	VOL	0 V Typ. , -0.15V to 0.15V	DC characteristics,Single output
Crossing Voltage	Vcr	0.25V to 0.55V
Input voltage	VIH	70% VCCMin.	OE terminal
Input voltage	VIL	30% VCCMax.	OE terminal
differential output rise slew rate/ fall slew rate	Rr / Rf	1V/n to 4V/ns	Between -0.15% and 0.15 defferential output
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.3ps Max.	f0≦ 160 MHz	Offset frequency: 12kHz to 20MHz
		0.4ps Max.	160 MHz < f0≦ 175 MHz
		0.2ps Max.	f0> 175 MHz
Frequency aging	f_aging	± 10 × 10-6/ year Max.	First year	+25°C , First year VCC= 2.5V , 3.3V
Frequency aging	f_aging	A : Included in Frequency tolerance	10years	+25°C , First year VCC= 2.5V , 3.3V

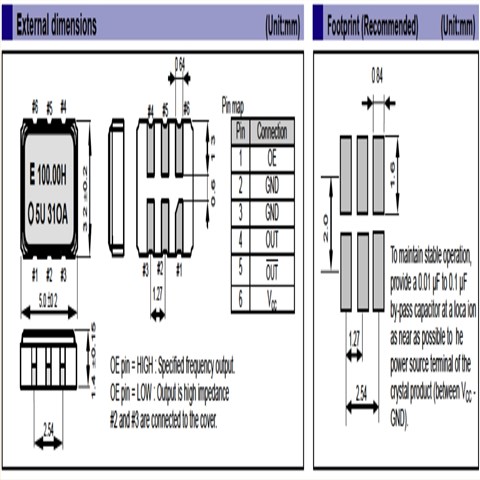

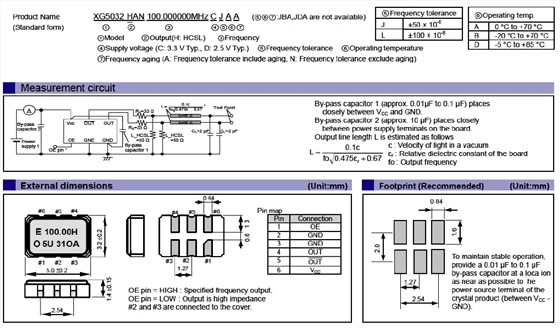

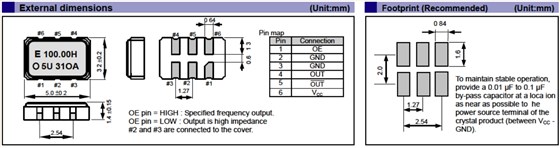

愛普生低抖動振蕩器,X1M0004610002,XG5032HAN有源晶振,6G模塊差分晶振 尺寸圖

OSC晶振產品特性：

頻率范圍 100MHz ~ 200MHz

電源電壓 2.5 v Typ。/ 3.3V類型

輸出 HCSL

函數輸出啟用(OE)

外形尺寸 5.0 × 3.2 × 1.4mm

低抖動和低相位噪聲的SAW單元。

更多相關日本愛普生晶振型號

編碼	品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1M0000910001	愛普生晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910002	愛普生晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910003	愛普生晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910004	愛普生晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0000910005	愛普生晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-20 to 70 °C
X1M0000910006	愛普生晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910007	愛普生晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0000910008	愛普生晶振	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910009	愛普生晶振	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910010	愛普生晶振	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0001010002	愛普生晶振	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	2.375 to 2.625 V	0 to 70 °C
X1M0004310004	愛普生晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310006	愛普生晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310007	愛普生晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004310008	愛普生晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310009	愛普生晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310010	愛普生晶振	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310011	愛普生晶振	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004610001	愛普生晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.375 to 2.625 V	0 to 70 °C
X1M0004610002	愛普生晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004610003	愛普生晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004610006	愛普生晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
